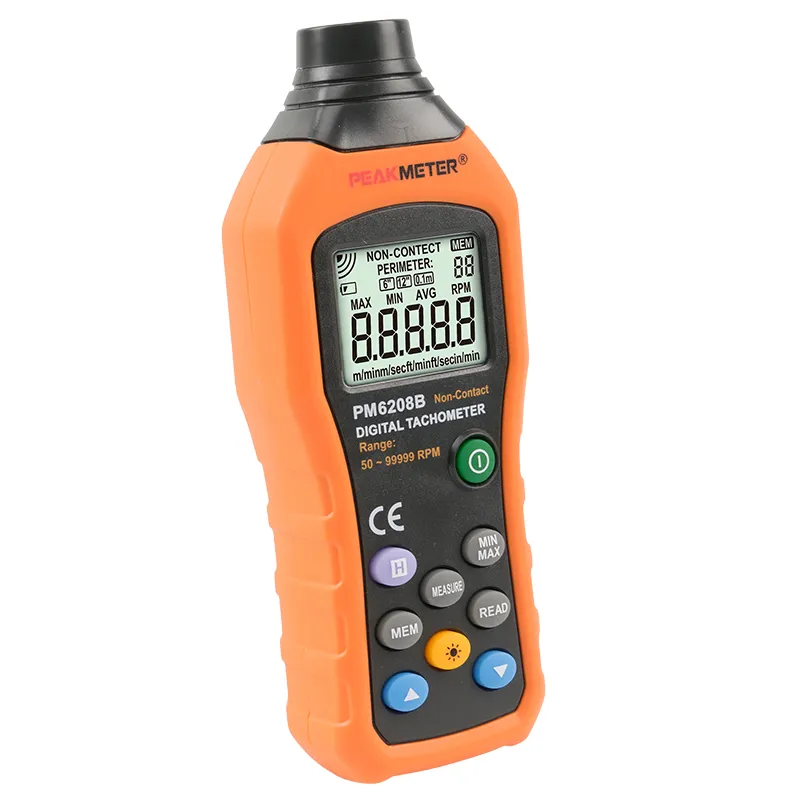

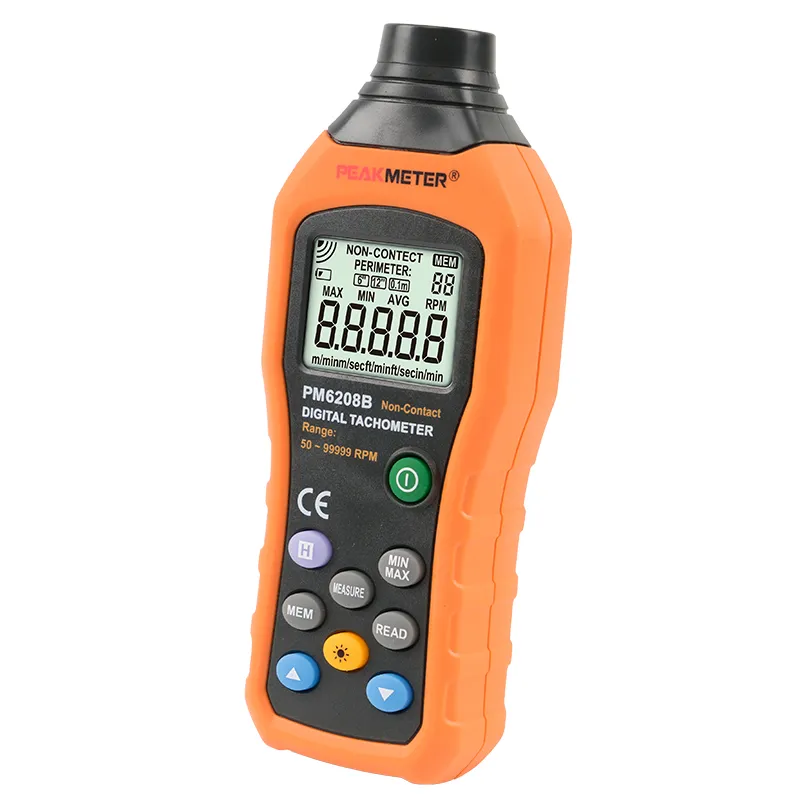

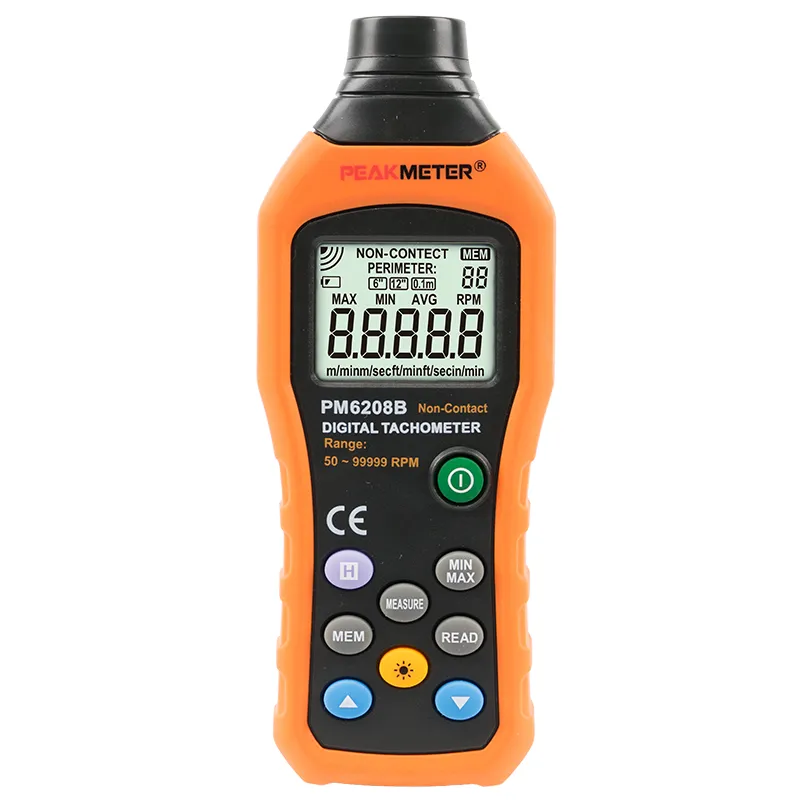

The PM6208B is a Non-contact-type digital tachometer with stable performance, high reliability and high safety performance. It can be used for hand-held or fixed measurement. The core component of the meter is a compact high-speed integrated chip. The meter will display rotation speed from 50RPM~99999RPM. Besides, its' measuring distance is 50mm~250mm. It calculates the exact rotation speed value through a reflected light sampling process. Auto shut down after 30S of non-use to conserve battery life, with low battery indication. As a compact design and superior performance instrument, it has great advantages in measurement. This digital tachometer complies with CE RoHS.
Non-Contact Measurement: 50~99999RPM ± (0.03%+2)
Measuring Distance: 50mm~250mm
Auto Power Off: 30s
MAX/MIN/AVG Functions
Data Logging: 100 groups
Data Hold
Display Back Light
Low Battery Indication
| SPECIFICATION | RANGE | RESOLUTION | ACCURACY |
| Non-Contact Measurement | 50～99.99RPM | 0.01RPM | |
| 100～9999.9RPM | 0.1RPM | ±（0.03%+2） | |
| 10000～19999RPM | 1.0RPM | ||
| Measuring Distance | 50mm～250mm | ||
| FEATURE | |||
| Auto Power Off | 30s | ||
| MAX/MIN/AVG Function | √ | ||
| Data Logging | 100groups | ||
| Data Hold | √ | ||
| Back Light | √ | ||
| Low Battery Indication | √ | ||
| GENERAL | |||
| Power Supply | 8x1.5v AAA Batteries | ||
| Product Size | 155mm×60mm×27mm | ||
| Net weight | 120g(batteries are not included） | ||
| Gross weight | 312g | ||
| Safty Rating | CE RoHS | ||
| Package（PCS/carton） | 40 pcs | ||
| Color Box Size | 189mm×111mm×62mm | ||
| Carton Size | 400mm×335mm×465mm | ||
| G.W | 13.5kg | ||
| Users Manual | 4x1.5V AAA Batteries |
