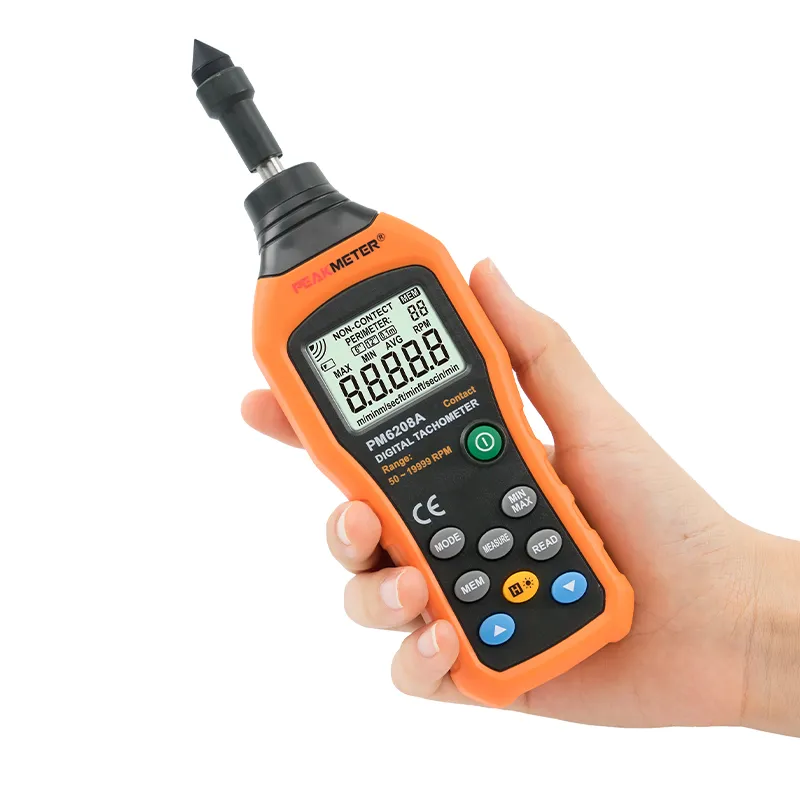

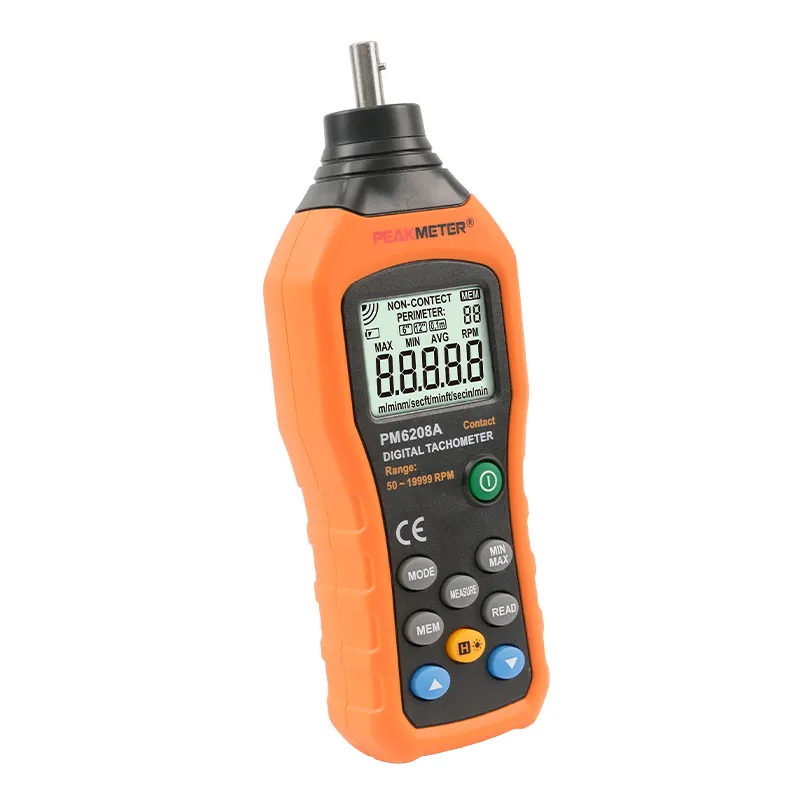

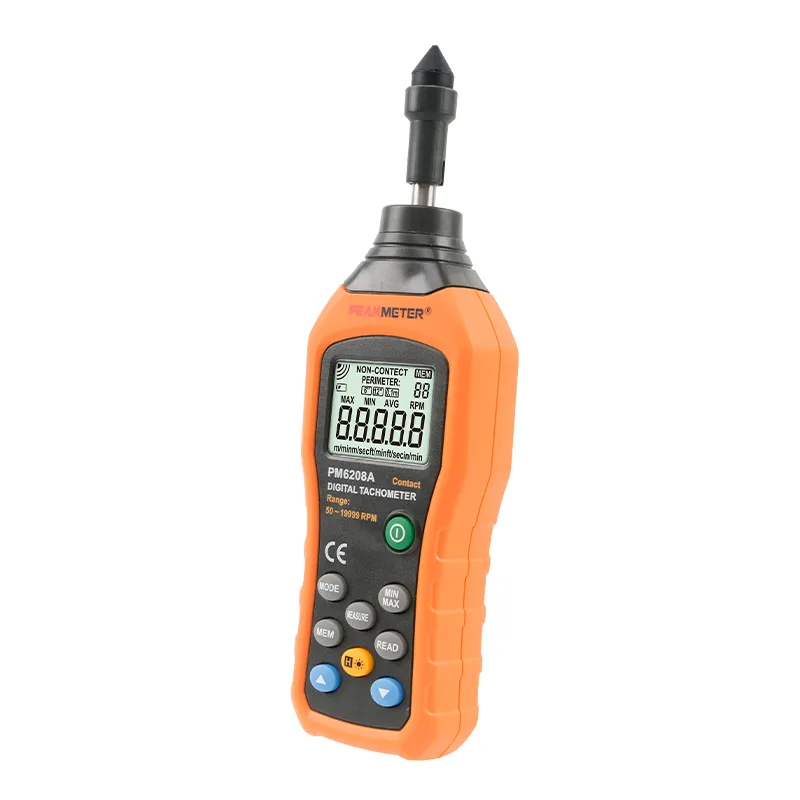

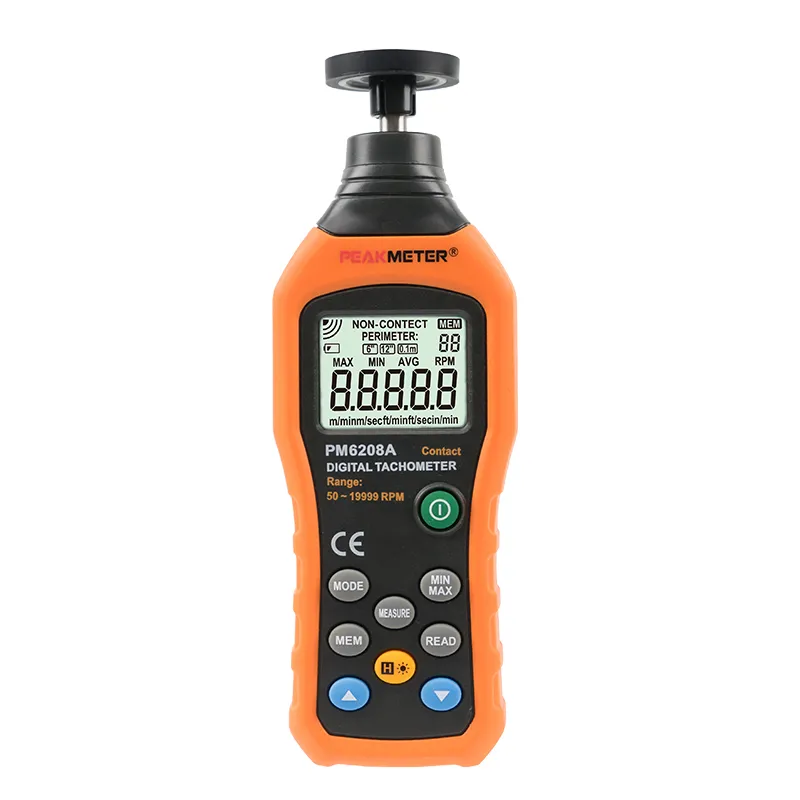

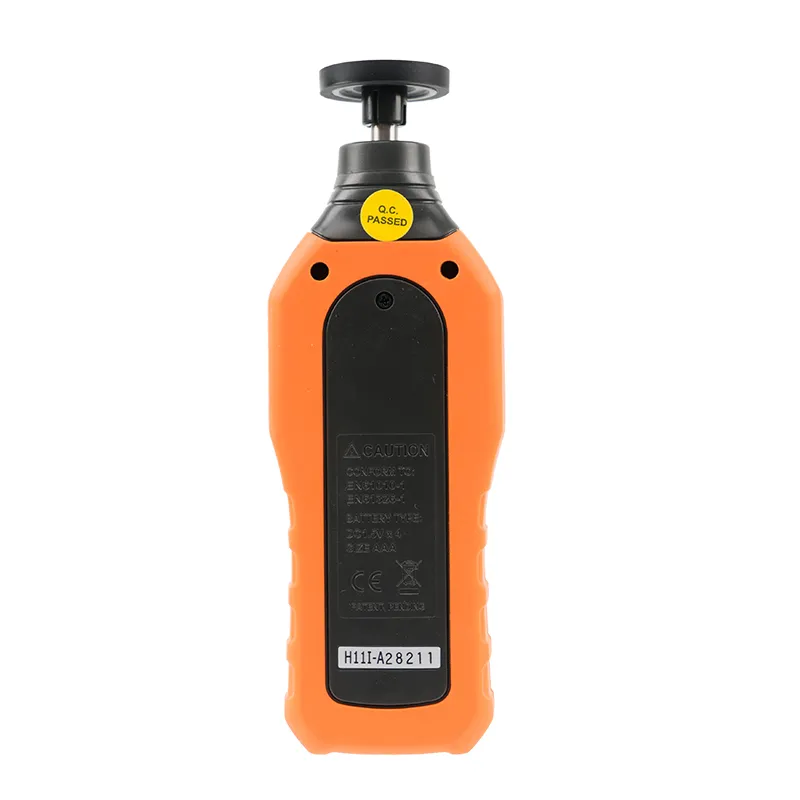

The PM6208A is a Contact-type digital tachometer with stable performance, high reliability and high safety performance. It can be used for hand-held or fixed measurement. The core component of the meter is a compact high-speed integrated chip. The meter will display rotation speed from 50RPM~19999RPM. It calculates the exact rotation speed value through a reflected light sampling process. With a compact design, it is a meter with superior performance. With the power saving and high-reliability circuit designed, well-designed high-efficiency power supply circuit makes the batteries more durable. This digital tachometer complies with CE RoHS.
Contact Measurement: 50~19999RPM±(0.03%+2)
Measuring Distance: N/A
Auto Power Off: 30S
MAX/MIN/AVG Functions
Max/Min M/sSec Ft/min Ft/Secin/Min unit Selection
Data Logging: 100 Groups
Data Hold
Display Back Light
Low Battery Indication
| SPECIFICATION | RANGE | RESOLUTION | ACCURACY |
| Contact Measurement | 50～99.99RPM | 0.01RPM | ±（0.03%+2） |
| 100～9999.9RPM | 0.1RPM | ±（0.03%+2） | |
| 10000～19999RPM | 1.0RPM | ±（0.03%+2） | |
| Measuring Distance | 50mm～250mm | ||
| FEATURE | |||
| Auto Power Off | 30s | ||
| MAX/MIN/AVG Function | √ | ||
| Data Logging | 100 groups | ||
| Data Hold | √ | ||
| Back Light | √ | ||
| Low Battery Indication | √ | ||
| GENERAL | |||
| Power Supply | 4x1.5v AAA Batteries | ||
| Product Size | 155mm×60mm×27mm | ||
| Net weight | 120g(batteries are not included） | ||
| Gross weight | 358g | ||
| Safty Rating | CE RoHS | ||
| Package（PCS/carton） | 40 pcs | ||
| Color Box Size | 189mm×111mm×62mm | ||
| Carton Size | 400mm×335mm×465mm | ||
| G.W | 15.3kg | ||
| Adaptor | Users Manual | 4x1.5V AAA Batteries |
