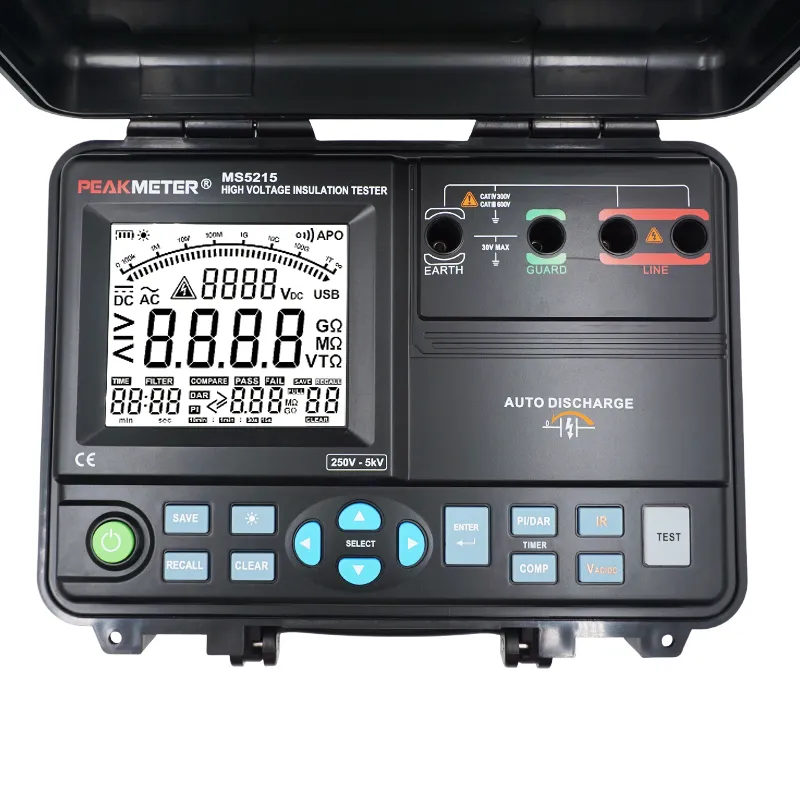

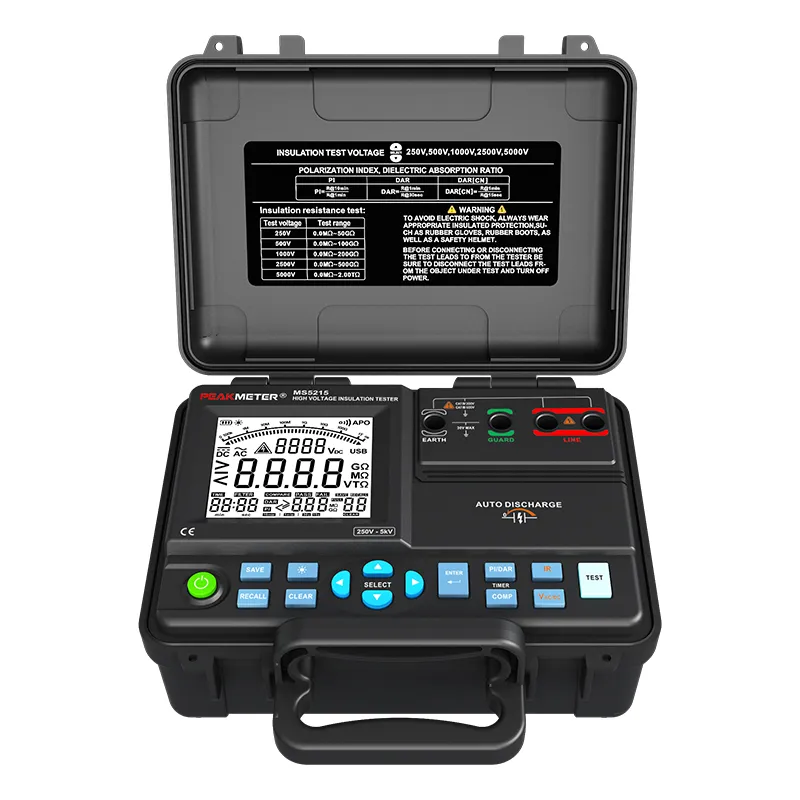

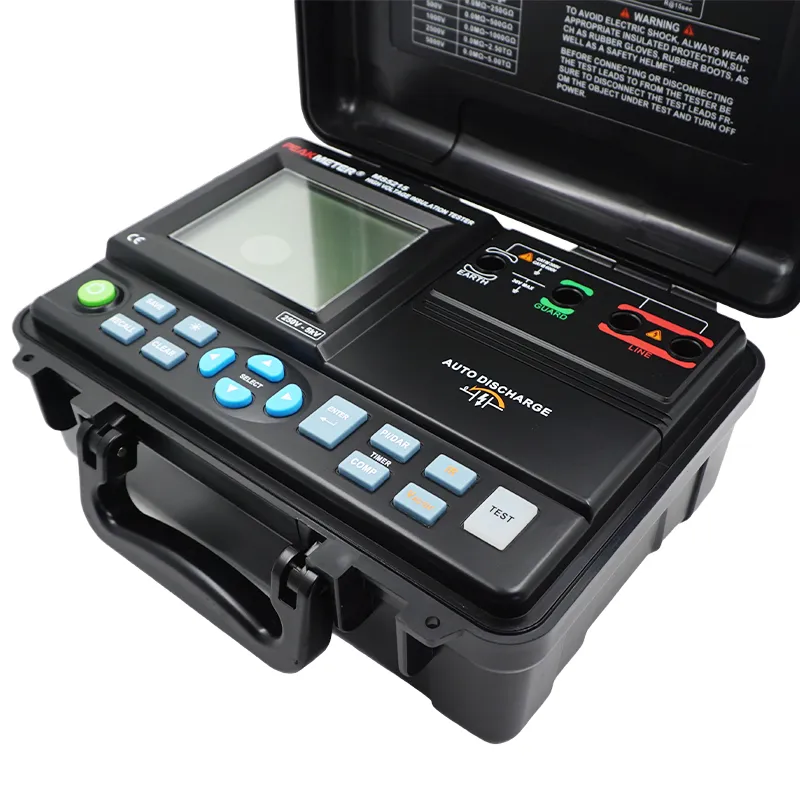

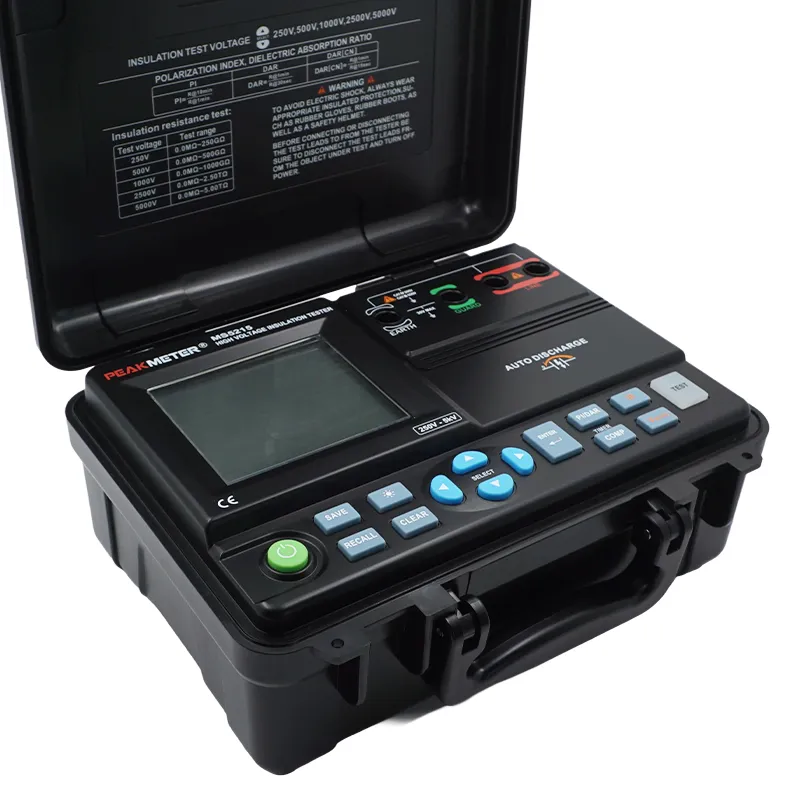

The MS5215 is a battery powered digital high voltage insulation resistance tester. The insulation resistance measurement of this instrument has 5 test voltage outputs, namely 250V, 500V, 1000V, 2500V, 5000V; the maximum value of the measurable resistance is 5TΩ, the maximum short-circuit current is 3mA, the polarization index (PI) and Dielectric Absorption Ratio (DAR) can be automatically calculated, no other settings are required. This instrument has the functions of automatic discrimination of AC and DC voltage, timing measurement, comparison, storage, backlight, automatic shutdown, automatic test prohibition and automatic discharge when the tested terminal is charged, which can protect the safety of testers. With its high precision, high stability and high reliability, this instrument is ideal for numerous overhauls, commissioning and preventive maintenance.
Checking the Insulation of High-Voltage Electrical Equipment (Electric Motor, Transformer, and Cable, etc)
Test Voltage from 250V -5000V
Insulation Resistance up to 5 TΩ
Short Current up to 3mA
Auto Caculate PI (Polarization Index) and DAR (Dielectric Absorption Ratio)
Step-Voltage Measurement
Temperature Measurement
Temperature Compensation for Insulation Test
Leakage Current Measurement
Timer Function
Data Storage Function
| SPECIFICATION | |||||
| Rated voltage | 250V | 500V | 1000V | 2500V | 5000V |
| Measurement range | 0.0MΩ~250GΩ | 0.0MΩ~500GΩ | 0.0MΩ~1000GΩ | 0.0MΩ~2.5TΩ | 0.0MΩ~5.00TΩ |
| Open circuit voltage | DC250V100%~120% | DC500V100%~120% | DC1000V100%~120% | DC2500V100%~120% | DC5000V100%~120% |
| Output circuit( specified load) | At 250KΩ load: 1mA~1.2mA | At 500KΩ load: 1mA~1.2mA | At 1MΩ load: 1mA~1.2mA | At 2.5MΩ load：1mA~1.2mA | At 5MΩ load：1mA~1.2mA |
| Accuracy | 0.0MΩ~99.9GΩ : ±(5%＋3) | 0.0MΩ~9.99GΩ ±(5%＋3) | 0.0MΩ~9.99GΩ ±(5%＋3) | 0.0MΩ~9.99GΩ ±(5%＋3) | 0.0MΩ~9.99GΩ ±(5%+3) |
| 10.0GΩ~50.0GΩ : ±(10%＋5) | 10.0GΩ~50GΩ ±(10%＋5) | 10.0GΩ~100GΩ ±(10%＋5) | 10.0GΩ~100GΩ ±(10%+5) | 10.0GΩ~100GΩ ±(10%+5) | |
| 50.10GΩ~250.0GΩ : ±(20%＋10) | 50.1GΩ~500GΩ ±(20%＋10) | 101.0GΩ~500GΩ ±20% | 101GΩ~500GΩ ±20% | 101GΩ~1.00TΩ ±20% | |
| ＞50GΩ，Humidity≤50%RH | ＞50GΩ，Humidity≤50%RH | 50.1GΩ~1000GΩ ±(30%+20) | 501GΩ~2.5TΩ ±（30%+20） | 1.01TΩ~5.00TΩ ±(30%+20) | |
| ＞50GΩ， Humidity≤50%RH | ＞100GΩ，Humidity≤50%RH | ＞100GΩ， Humidity≤50%RH | |||
| Short circuit current | Greater than 3.0mA | ||||
| Voltage measurement | Voltage type | Testing range | Resolution ratio | Accuracy | |
| ACV | 30~600V(50/60Hz) | 1V | ±（2% + 3 ） | ||
| DCV | ±30~±600V | 1V | ±（2% + 3 ） | ||
| FEATURES | |||||
| Checking the insulation of high-voltage electrical equipment (electric motor, transformer,and cable,etc) | |||||
| Test Voltage from 250V~5000V | |||||
| Insulation Resistance up to 5TΩ | |||||
| Short Current up to 3mA | |||||
| Auto Caculate PI (Polarization Index)and DAR(Dielectric absorption ratio) | |||||
| Step-Voltage Measurement | |||||
| Temperature measurement | |||||
| Temperature compensation for Insulation Test | |||||
| Leakage Current measurement | |||||
| Data Storage function and uploading to PC by USB2.0 Interface. | |||||
| Timer Function | |||||
| GENERAL | |||||
| Power Supply | 1.5V(LR14)x10 Batteries | ||||
| Product Size | 284mm x 221mm x 121mm | ||||
| Net weight | Approx.1985g（not include batteries） | ||||
| Gross weight | 5900g | ||||
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600V.CAT.IV300V | ||||
| Package（PCS/carton） | 1PCS | ||||
| Color Box Size | |||||
| Carton Size | 520mm x330mm x222mm | ||||
| G.W | 6900kg | ||||
| Test Leads | 2xAlligator clip | Users Manual | 10x LR14 Batteries |
