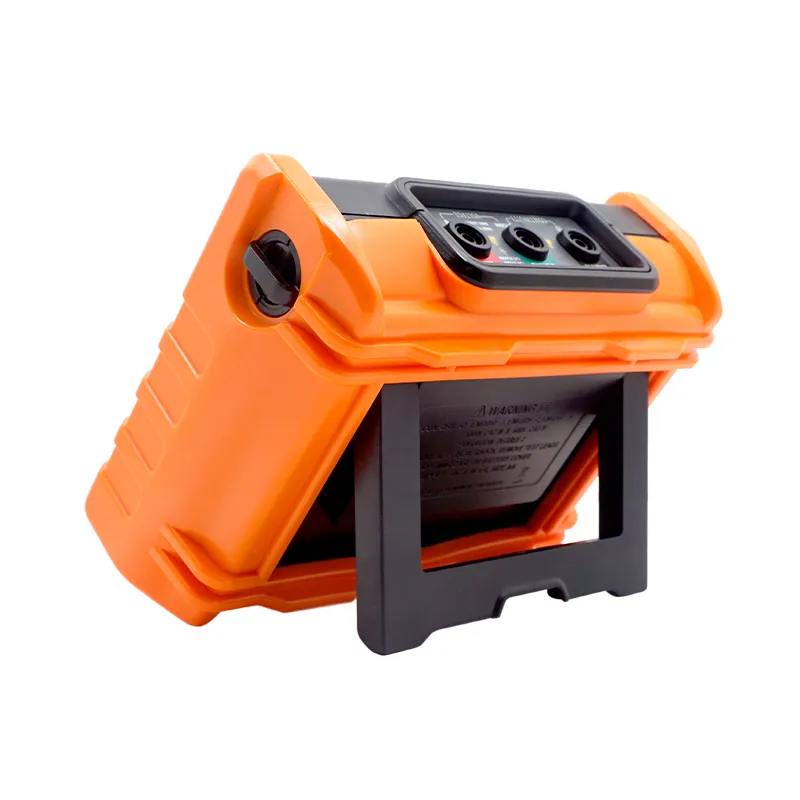

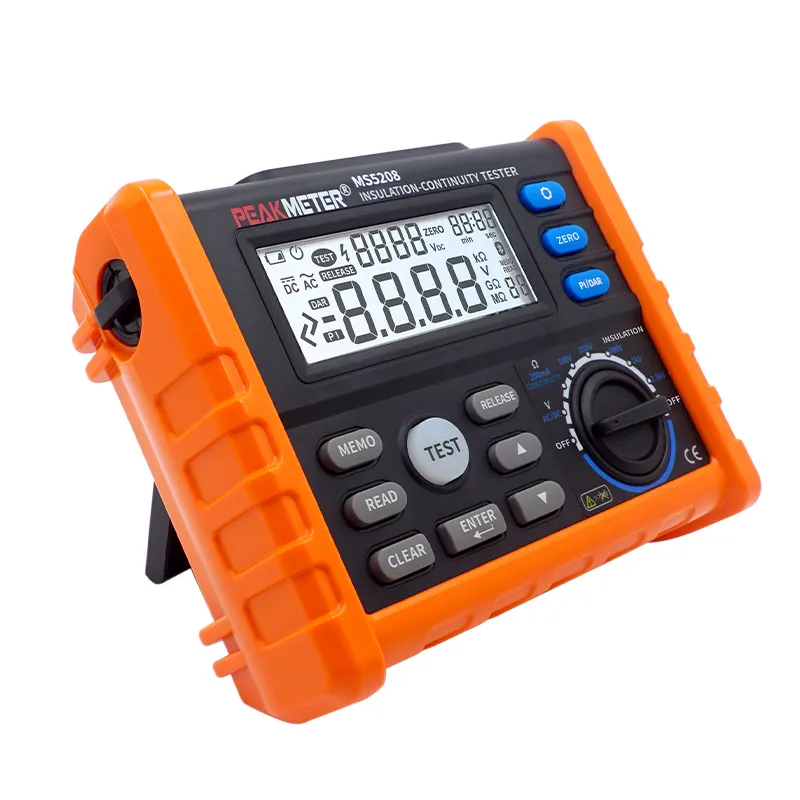

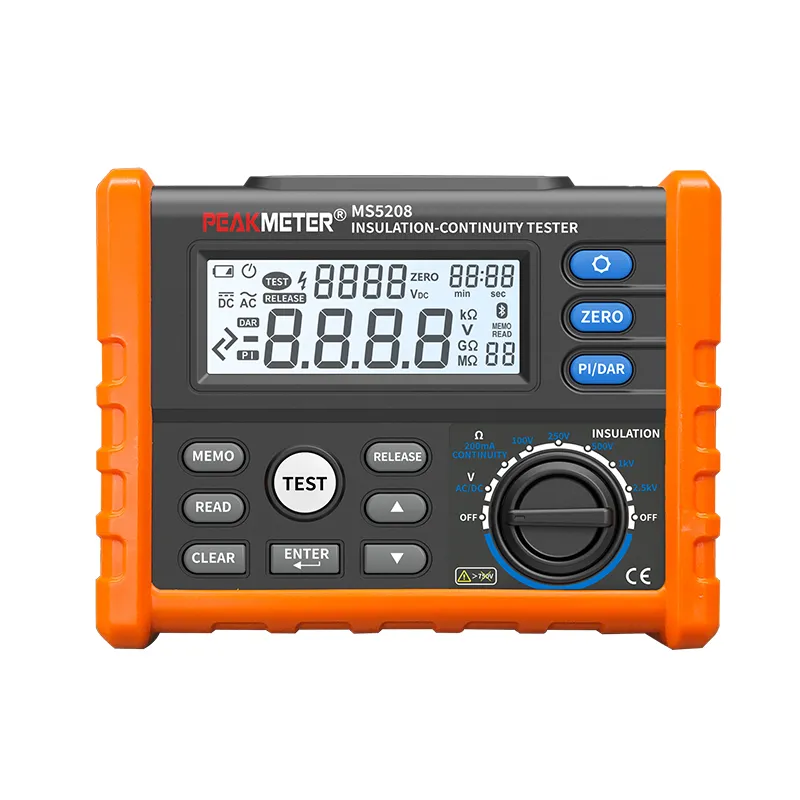

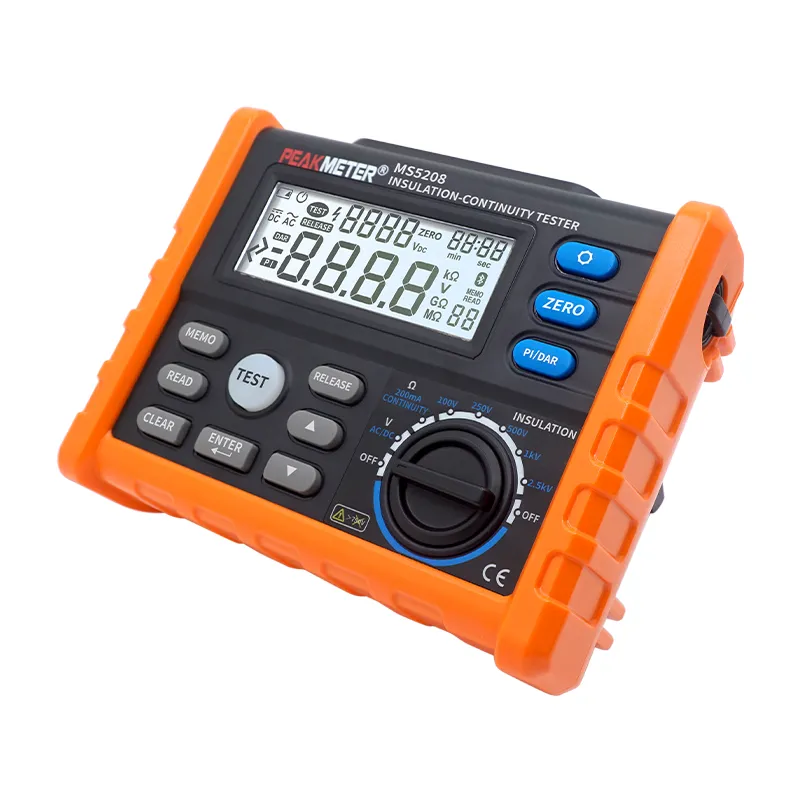

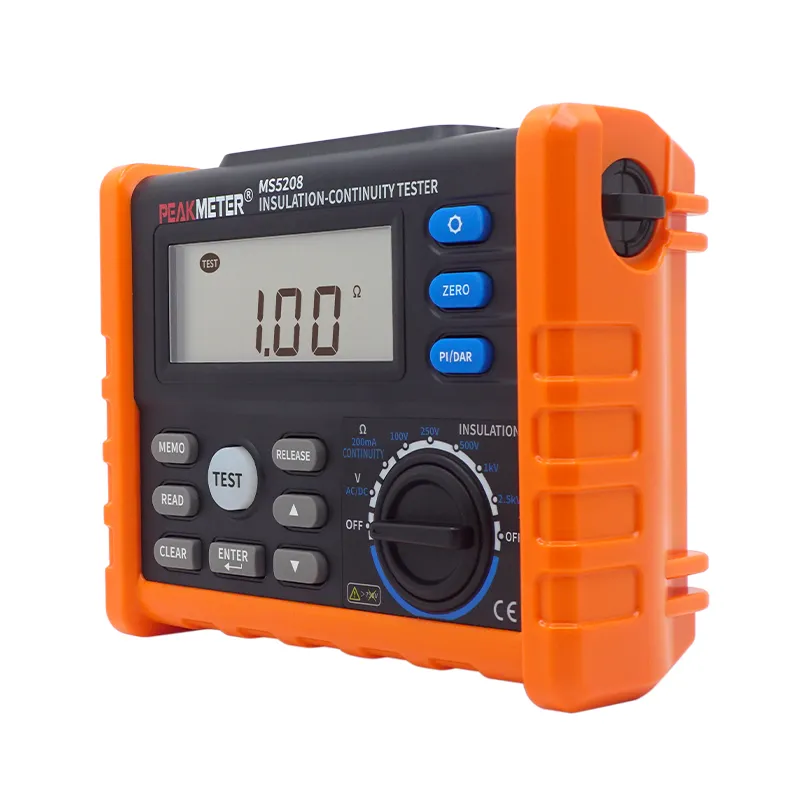

The MS5208 is a versatile, battery-powered digital tester designed for high voltage insulation and continuity testing. It offers adjustable output voltages (100V, 250V, 500V, 1000V, 2500V), high precision measurements, and features such as automatic discharge, live alarm, dual display, and data storage. Suitable for professional use in power equipment, supply lines, motors, transformers, and new energy vehicles, it ensures safety and reliability with compliance to international standards.
Display: Double Display
Auto Power Off
Continuous Resistance Measurement
AC Voltage Measurement
Low Battery Indication
Clear Function: Clear the Base when Measuring Continuous Resistance
Back Light
Data Storage
Start Calculation: Automatically Calculate PI and DAR of the Measured Object
| SPECIFICATIONS | Output Voltage | Range | |
| Insulation Resistance Measurement | 100V(1.0~1.2mA)@100kΩ | 0.01MΩ~249MΩ ±(3%+5) | |
| 0.25GΩ~2.49GΩ ±(10%+5) | |||
| 2.5GΩ~10.0GΩ ±(20%) | |||
| 250V(1.0~1.2mA)@250kΩ | 0.01MΩ~249MΩ ±(3%+5) | ||
| 0.25GΩ~2.49GΩ ±(10%+5) | |||
| 2.5GΩ~25.0GΩ ±(20%) | |||
| 500V(1.0~1.2mA)@500kΩ | 0.01MΩ~249MΩ ±(3%+5) | ||
| 0.25GΩ~29.9GΩ ±(10%+5) | |||
| 30GΩ~50.0GΩ ±(20%) | |||
| 1000V(1.0~1.2mA)@1MΩ | 0.01MΩ~249MΩ ±(3%+5) | ||
| 0.25GΩ~29.9GΩ ±(10%+5) | |||
| 30GΩ~100GΩ ±(20%) | |||
| 2500V(1.0~1.2mA)@1MΩ | 0.01MΩ~249MΩ ±(3%+5) | ||
| 0.25GΩ~29.9GΩ ±(10%+5) | |||
| 30GΩ~300GΩ ±(20%) | |||
| Continuity resistance | open-circuit voltage :4.8~5.3V | 0.00Ω~9.99Ω ±(1.5%+5) | |
| MAX current:200mA | 10.0Ω~99.9Ω ±(1.5%+5) | ||
| 100Ω~300Ω ±(1.0%+5) | |||
| Voltage | AC Voltage | 20~750V(50/60Hz) ±(2%+3) | |
| DC Voltage | ±20~ ±1000V ±(2%+3) | ||
| GENERAL | |||
| Power Supply | 6xl.5V AA Batteries | ||
| Product Size | 200mmx155mmx76mm | ||
| Product Weight | Approx 500g | ||
| Safety Standard/Rating | EN61010-1,EN61557-1,EN61326-1 CAT.IIl 1000V CAT.IV 600V | ||
| Test Leads | 2xAlligator clip | Users Manual | 6x1.5V AAA Batteries |
