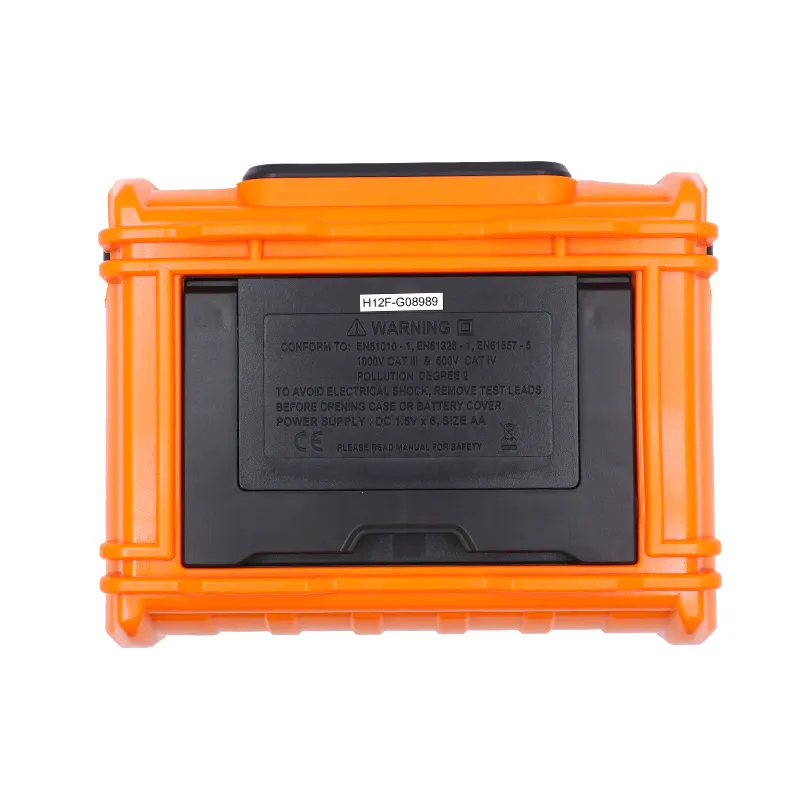

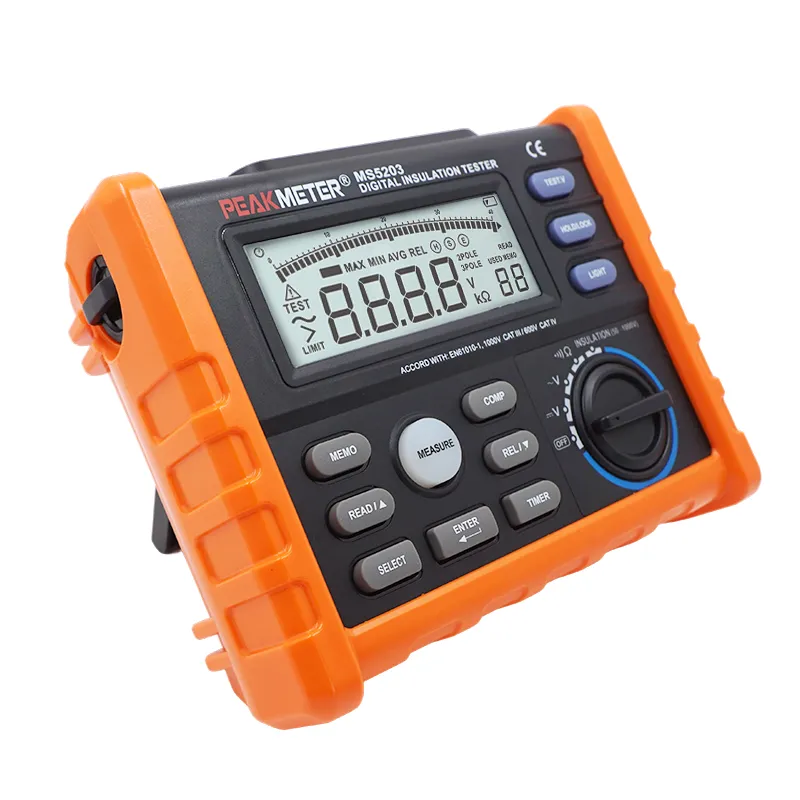

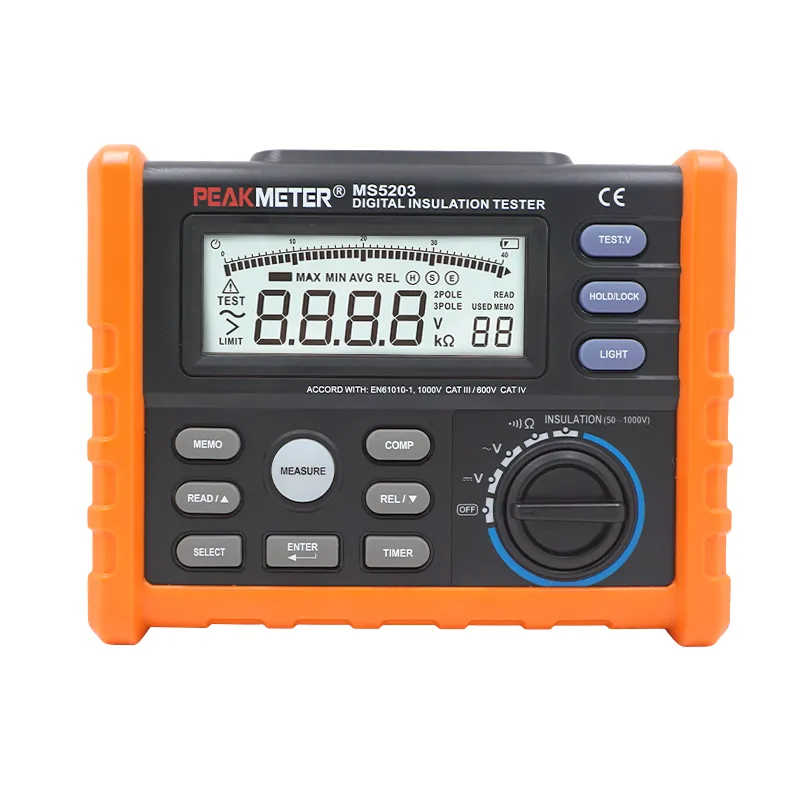

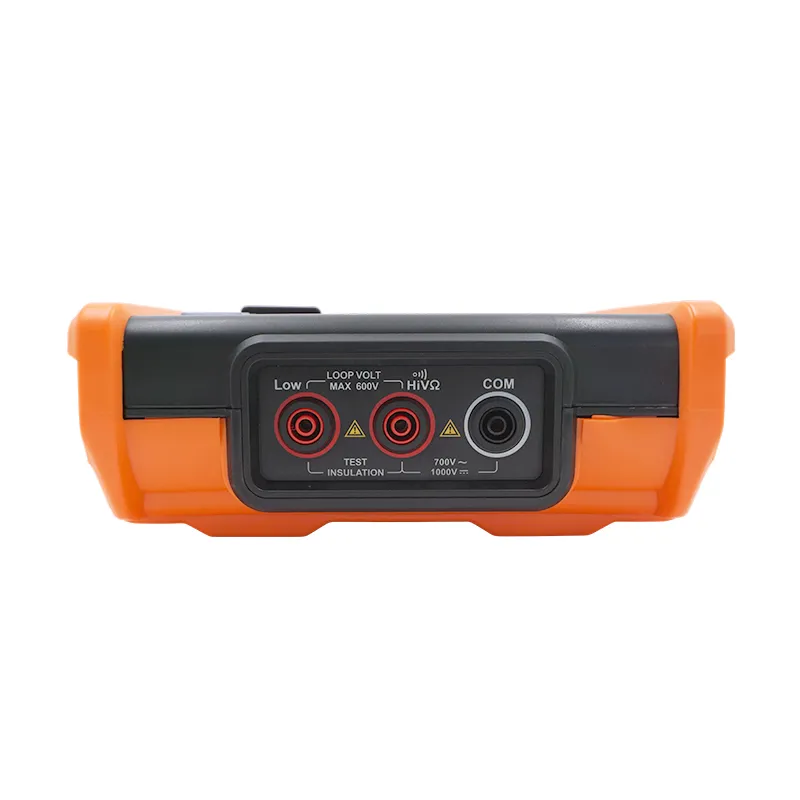

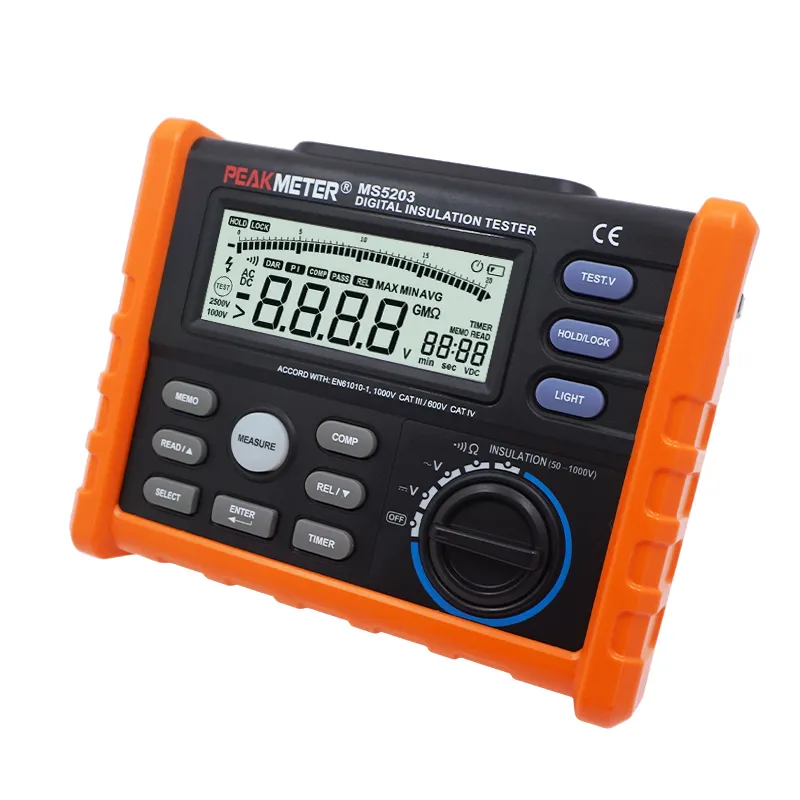

MS5203 High Precision Digital Insulation Resistance Tester 1000 Volt And 10GOhm Detection

Name: MS5203 High Precision Digital Insulation Resistance Tester
Brand: Guilin Huayi Peakmeter Technology Co.,Ltd
Availability: InStock

The PEAKMETER MS5203 is a professional digital insulation resistance tester tailored for electrical maintenance and insulation diagnosis. It provides selectable test voltages (50V~1000V) and measures insulation resistance from 0.01MΩ to 10GΩ. Supporting automatic PI & DAR calculation, it enables comprehensive evaluation of cable, motor and transformer insulation status. Built with backlit LCD, data hold, MAX/MIN/AVG, it facilitates field measurement. Safety designs including live circuit alert, automatic discharge and overload protection are equipped. CE certified, this robust megohmmeter is an ideal tool for electricians and maintenance engineers.

Features

Specification

Documents

Accessories & Options

Features of MS5203 High Precision Digital Insulation Resistance Tester

Safety Standard/Rating: EN61010-1,EN61557-1,EN61326-1,CAT.III 1000V/CAT.IV 600V
Auto Calculate PI and DAR
Store /Load Function
Compare Function
Auto Discharge for Capacitive Load
Timer Function for Insulation Test
Lock Function for Insulation Test
Low Battery Indication
DCV and ACV Test
Continuity Test
Auto Power Off
Digital and Analog Display

Specification of MS5203 High Precision Digital Insulation Resistance Tester

SPECIFICATIONS	Source Output Voltage	Range	Resolutioin	Test Current	Accuracy
Insulation Test	50V(0～20%)	0～20MΩ	0.01MΩ	1mA@50K	±(3%+5)
		20～200MΩ	0.10MΩ		±(3%+5)
		200～500MΩ	10.0MΩ		±(5%+5)
	100V(0～20%)	0～20MΩ	0.01MΩ	1mA@100K	±(3%+5)
		20～200MΩ	0.10MΩ		±(3%+5)
		200～1.00GΩ	10.0MΩ		±(5%+5)
	250V(0～20%)	0～20MΩ	0.01MΩ	1mA@250K	±(3%+5)
		20～200MΩ	0.10MΩ
		200～250MΩ	1.00MΩ
		250MΩ～2.5GΩ	10.0MΩ		±(5%+5)
	500V (0～20%)	0～20MΩ	0.01MΩ	1mA@500K	±(3%+5)
		20～200MΩ	0.10MΩ
		200～500MΩ	1.00MΩ
		500MΩ～5.0GΩ	10.0MΩ		±(5%+5)
	1000V(0～+20%)	0～200MΩ	0.10MΩ	1mA@1000K	±(3%+5)
		200～1000MΩ	1.00MΩ		±(3%+5)
		1.00～5.00GΩ	0.01GΩ		± (5%+0.1GΩ)
		5.00～10.0GΩ	0.01GΩ		± (10%+0.2GΩ)
		10.0～30.0GΩ	0.01GΩ		± (20%+0.2GΩ)
		30.0～100GΩ	0.01GΩ		± (30%+0.3GΩ)
Short Circuit Current	2.0mA
Multimeter Functions	DC Voltage Test	0.1～1000V			± (0.5% ＋5)
	AC Voltage Test	0.1～750V			± (1.5%＋5)
	Continuity Test	0.01～200Ω			± (1.0% ＋5)
GENERAL
Power Supply	6x1.5V AA batteries
Product Size	180(L) mm×140(W) mm×65(H)mm
Net weight	900g（not include batteries）
Gross weigh	2041g
Safty Rating	EN61010-1,EN61557-1,EN61326-1 CAT.III 1000V CAT.IV 600V
Package（PCS/carton）	6PCS
Color Box Size	340mm×265mm×103mm
Carton Size	560mm×36mm×335mm
G.W	13.5kg

MS5203 User Manual English

Title Download

MS5203 User Manual English

1 file(s)

Download

Accessories & Options of MS5203 High Precision Digital Insulation Resistance Tester

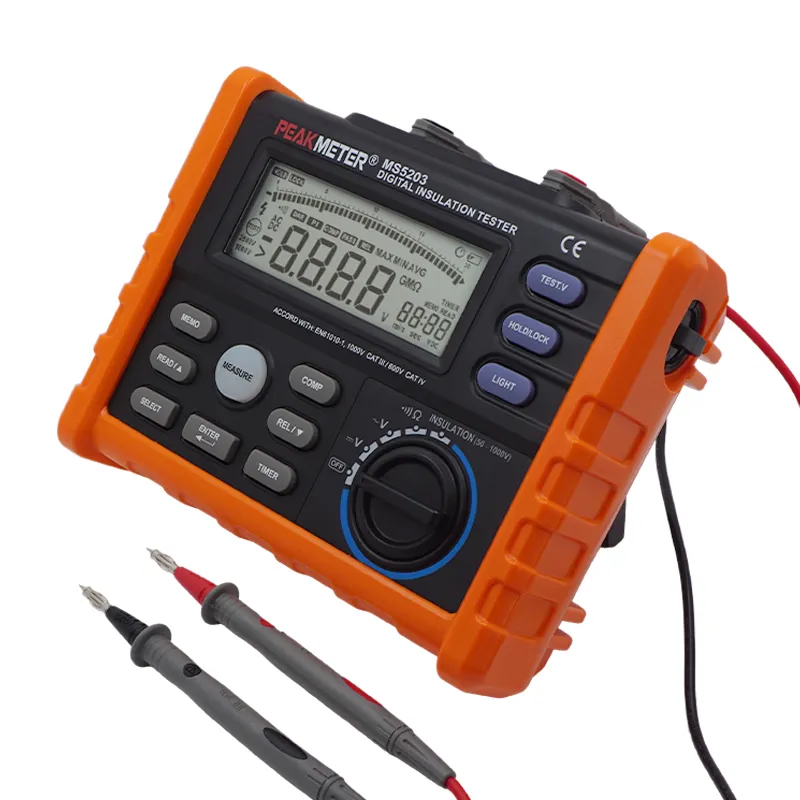

Test Leads

2xAlligator clip

Users Manual

6x1.5V AAA Batteries
