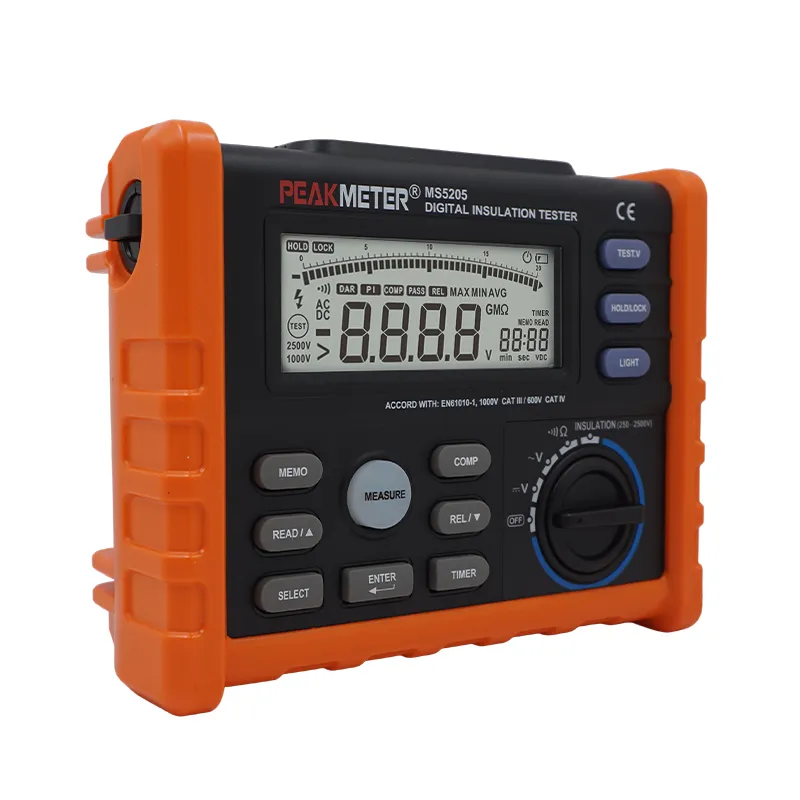

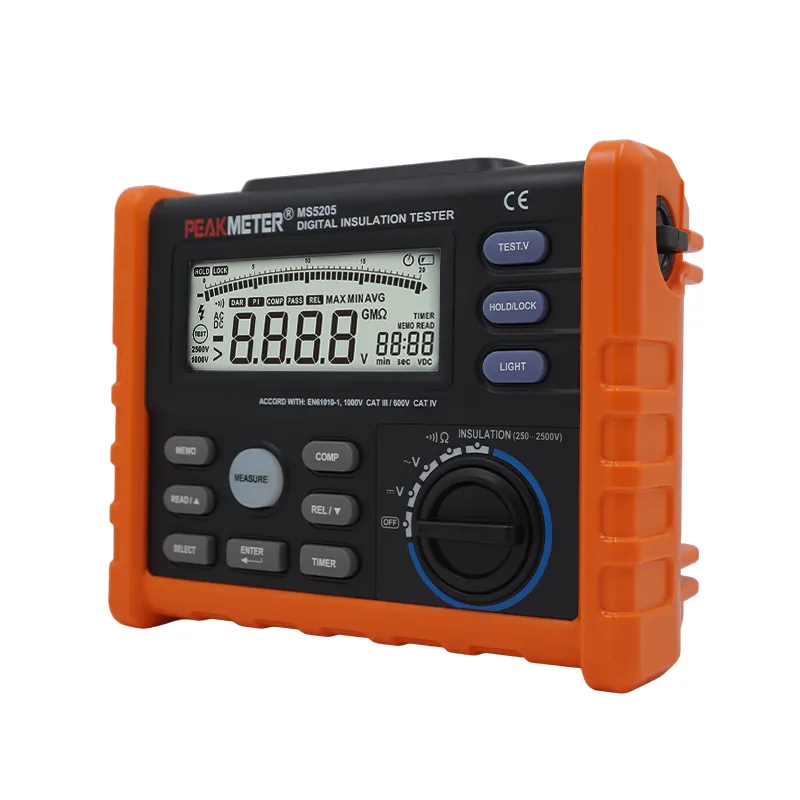

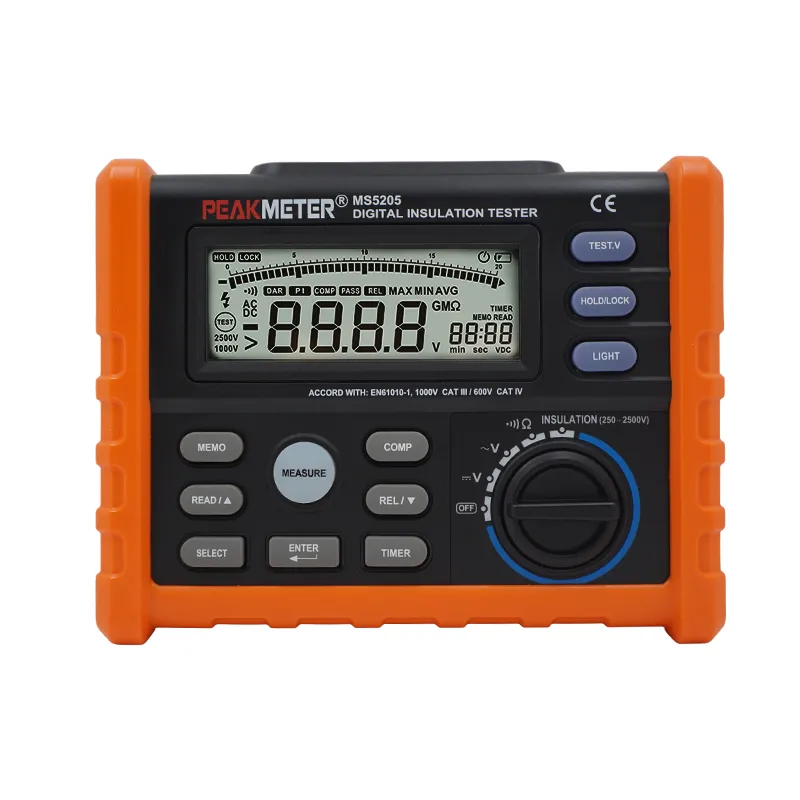

MS5205 is in accordance with international safety standards for electrical safety requirements of IEC61010-1 for electronic test equipment and handheld digital multimeters and design. Design and manufacture of strict compliance with IEC61010-1 of instrumentation 1000V CAT III and pollution degree 2 regulations. The Meter have automatic power off function(Sleep mode)to conserve battery power .if there is no function change orbutton press for 10 minutes. The Meter comes out of Sleep mode when a key is pressed or when the rotary switched is changed. Display-It consists of an analog display, a main display and a secondary display. Large high-definition display with backlight function enables users to read clearly in dark environments.The instrument can store up to 20 sets of data, and the new stored data will overwrite the original stored data when the data is stored. The stores data can be read and cleared according to user needs.
Auto Calculate PI and DAR
Store /Load Function
Compare Function
Auto discharge for Capacitive Load
Timer Function for Insulation Test
Lock Function for Insulation Test
DCV and ACV Test
Continuity Test
Auto Power Off
Digital and Analog Display
| SPECIFICATIONS | Source Output Voltage | Range | Resolutioin | Accuracy | |
| Insulation Test | 250V( 0～20%) | 0MΩ～20MΩ | 0.01MΩ | ±(3%+5) | |
| 20MΩ～200MΩ | 0.10MΩ | ||||
| 200MΩ～1000MΩ | 1.00MΩ | ||||
| 1GΩ～2.5GΩ | 0.01GΩ | ±(5%+5) | |||
| 500V (0～20%) | 0MΩ～20MΩ | 0.01MΩ | ±(3%+5) | ||
| 20MΩ～200MΩ | 0.10MΩ | ||||
| 200MΩ～1000MΩ | 1.00MΩ | ||||
| 1GΩ～5GΩ | 0.01GΩ | ±(5%+5) | |||
| 1000V(0～20%) | 0MΩ～20MΩ | 0.01MΩ | ±(3%+5) | ||
| 20MΩ～200MΩ | 0.10MΩ | ||||
| 200MΩ～1000MΩ | 1.00MΩ | ||||
| 1GΩ～10GΩ | 0.01GΩ | ±(5%+5) | |||
| 2500V(0～20%) | 0MΩ～2000MΩ | 1.00MΩ | ±(3%+5) | ||
| 2000MΩ～20GΩ | 0.01GΩ | ±(5%+0.2GΩ) | |||
| 20GΩ～100GΩ | 0.1GΩ | ±(10%+2GΩ) | |||
| 100GΩ～300GΩ | 0.1GΩ | ±(30%+2GΩ) | |||
| Short Circuit Current | 3.0 mA | ||||
| Multimeter Functions | DC Voltage Test | 0.1～1000V | ±(0.5% ＋5) | ||
| AC Voltage Test | 0.1～750V | ±(1.5%＋5) | |||
| Continuity Test | 0.01～200Ω | ±(1.0% ＋5) | |||
| GENERAL | |||||
| Power Supply | 6×1.5 LR14 Batteries | ||||
| Product Size | 180(L) mm×140(W) mm×65(H)mm | ||||
| Product Weight | 893 g（Batteries are not included） | ||||
| Gross weight | |||||
| Safety Rating | EN61010-1,EN61557-1,EN61326-1 CAT.III 1000V CAT.IV 600V | ||||
| Package（PCS/carton） | 6PCS | ||||
| Color Box Size | 340mm×265mm×103mm | ||||
| Carton Size | 560mm×360mm×335mm | ||||
| G.W | 14.7kg | ||||
| Test Leads | 2xAlligator clip | Users Manual | 6x1.5V AAA Batteries |
