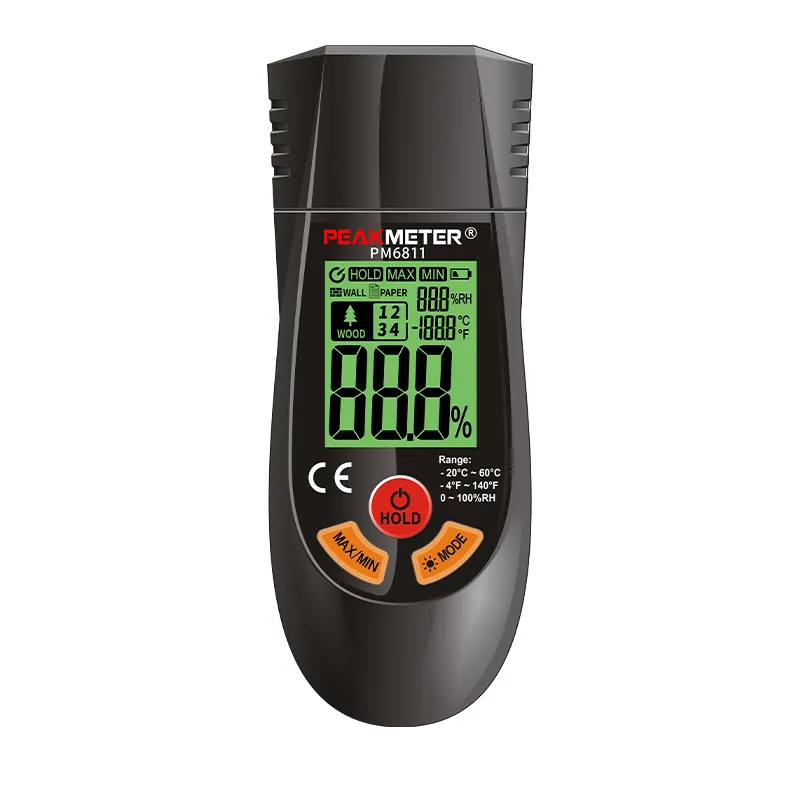

PM6811 is a high-performance and digital moisture testing with advanced technology.The instrument adopts high frequency principle,digital display, sensors and main body together as one, equipped with four gear is used to measure different kinds of woods, This moisture meter has high precision measuring instruments, and the small size,light weight,portable on-site testing. It is the ideal water testing instrument in the production process of timber industry.
Resolving Power: 0.10%
Temperature Compensation: -10~60°C
Tree Species Amendment
Data Retention
Max/Min Measured Value
Back Light
Auto Shutdown
Under Voltage Indication
| SPECIFICATIONS | Range | Resolution | Error | Instructions |
| Moisture Content | 0.0-75.0% | 0.10% | ±2.0% | Tree species:1:0%～30% |
| Tree species:2:0%～35% | ||||
| Tree species:3:0%～40% | ||||
| Tree species:4:0%～45% | ||||
| Temperature | -20～100℃ | 0.1℃ | ±1.0℃ | |
| Humidity | 0～100%RH | 0.1%RH | ±5.0%RH | |
| FEATURES | ||||
| Display | Maximum value "99.9%" | |||
| Data hold | √ | |||
| Backlight | √ | |||
| Auto-off | √ | |||
| Low-battery | √ | |||
| Max/Min Measured Value | √ | |||
| Temperature Compensation | √(-10～60℃） | |||
| Tree species Amendment | √ | |||
| GENERAL | ||||
| Power Supply | 2x1.5V AAA batteries | |||
| Product Size | 136mmx54mmx28mm | |||
| Net weight | 130g(not include batteries) | |||
| Gross weight | 157g | |||
| Safety Rating | EN61010-1,EN61010-2-032,EN61326,CATⅢ.600V | |||
| Package（PCS/carton） | 105PCS | |||
| Color Box Size | 152mmx88mmx40mm | |||
| Carton Size | 430mmx415mmx215mm | |||
| G.W | 17.5kg | |||
| Users Manual | 2x1.5V AAA Batteries |
