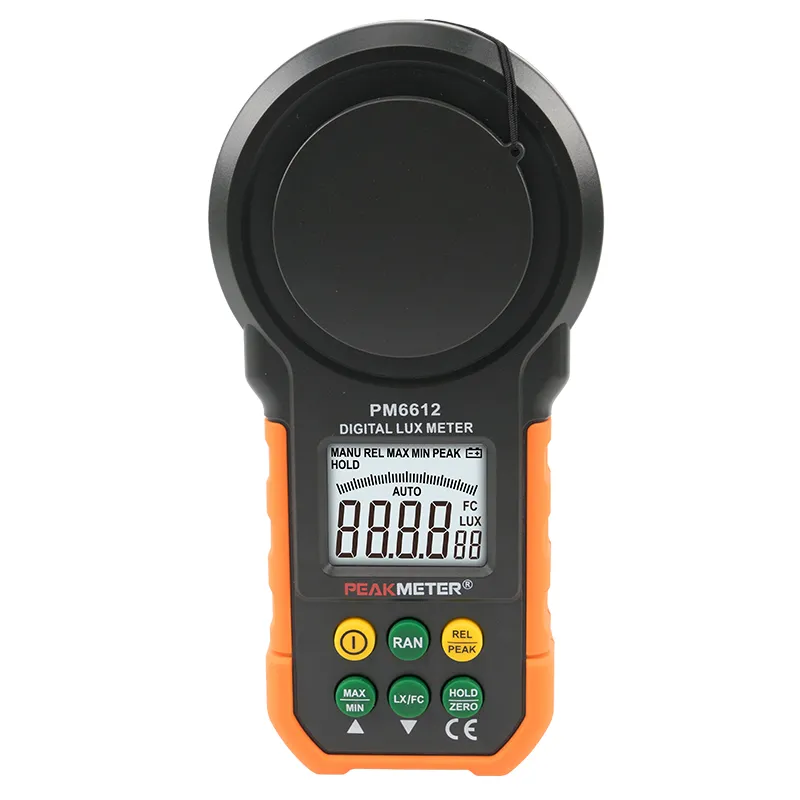

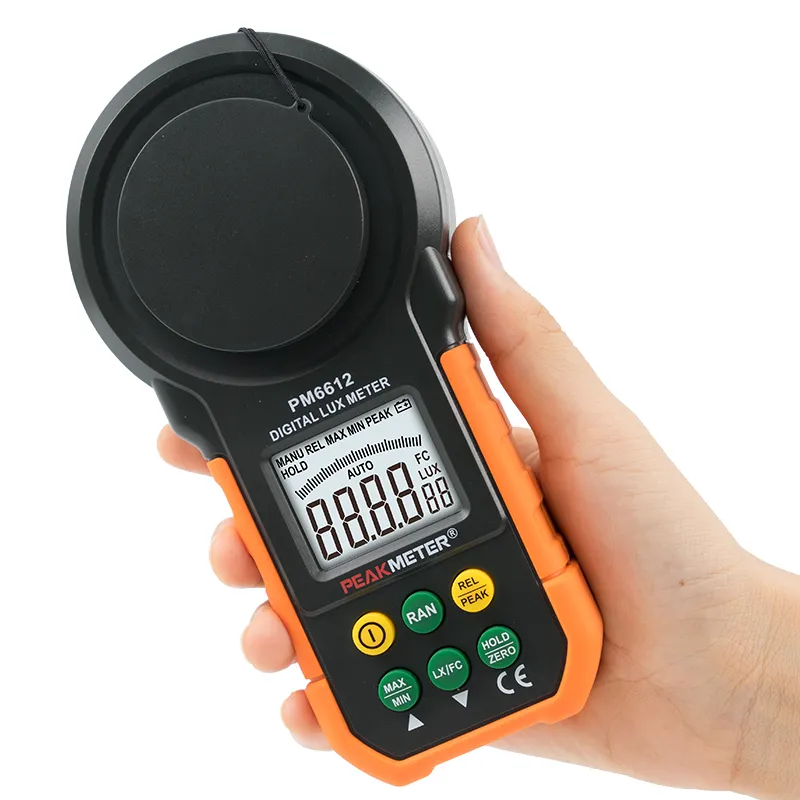

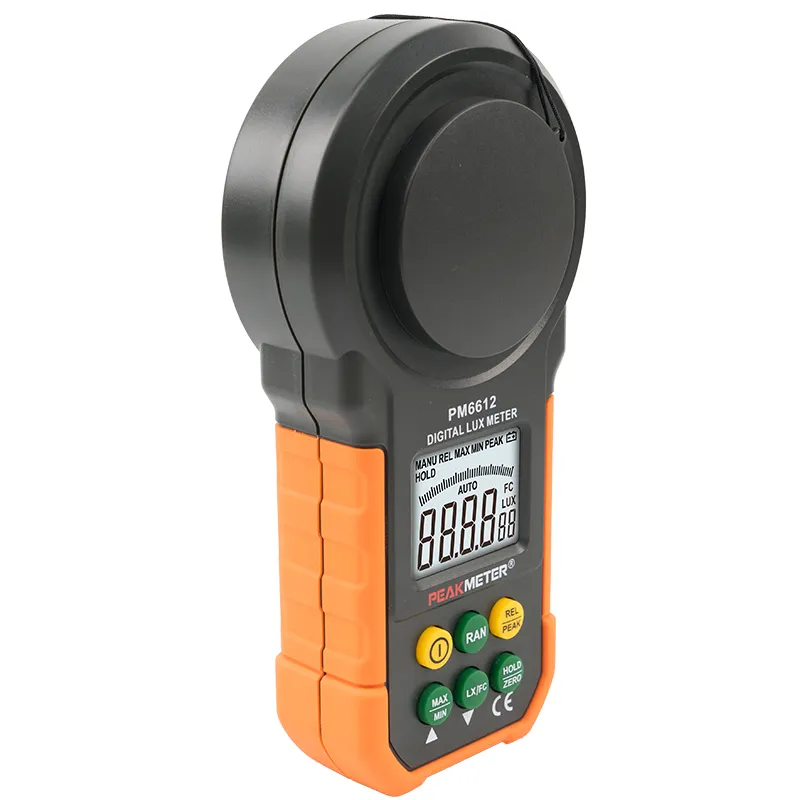

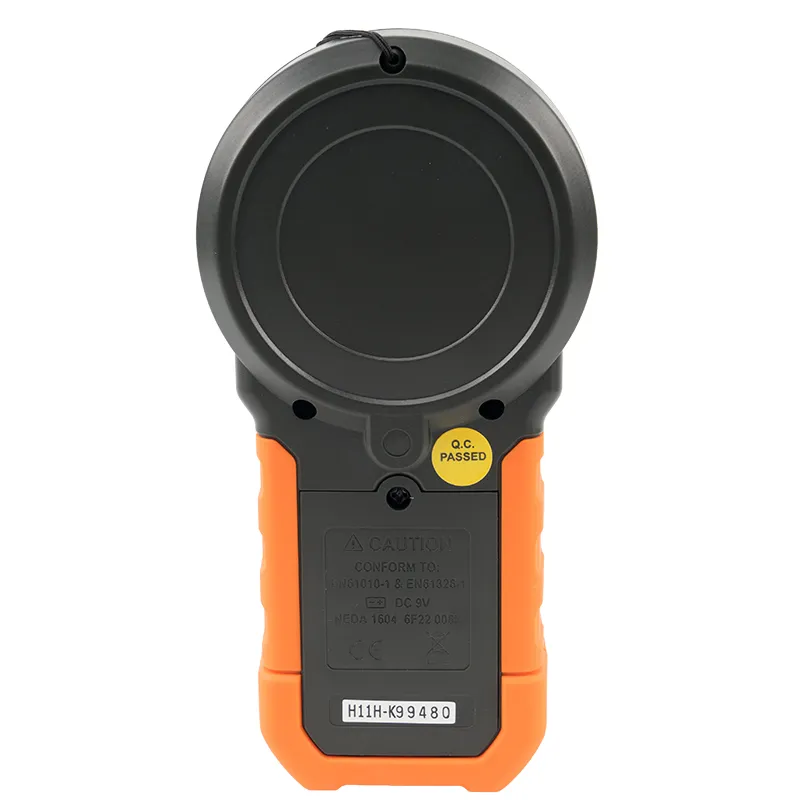

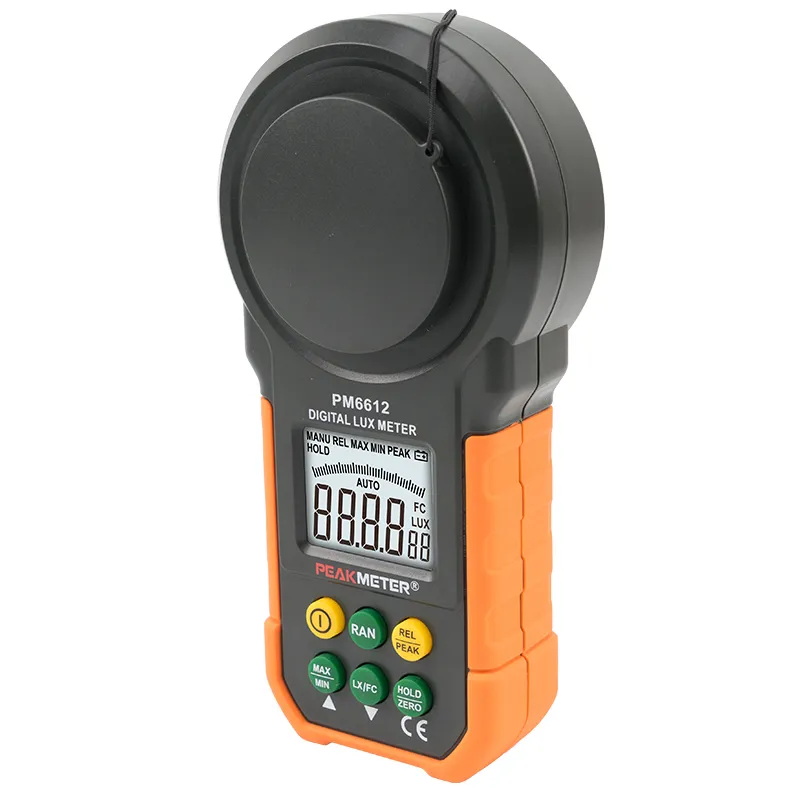

The multi-functional light meter has a friendly human-machine interface and can be activated by a simple press of keys.The buzzer activates upon key press to notify that it iseffective.This light meter is able to measure the visible light produced by fluorescent lamp,metal-halide lamp,high voltagesodium lamp or electric incandescent lamp for a vivid and intuitive image display.It has outstanding features of the multi-functionlight meter, such as Automatic and manual range switching, Inquiry function for maximum and minimum values, 1/2 bit LCD display,with analog bar display, Data hold function and so on.
Display: 2000 Counts
Analog Bar Indication
Auto Range
Manual Range
Auto Power Off
MAX/MIN Function
Peak Measurement
FC/Lux Unit Selection
Data Hold
| SPECIFICATION | RANGE | RESOLUTION | ACCURACY |
| Measurement range | 0～200000Lux | ±3% | 0.01Lux |
| 0～20000FC | ±3% | 0.01FC | |
| FEATURE | |||
| Automatic and manual range switching | |||
| Inquiry function for maximum and minimum values | |||
| Data hold function | |||
| Peak value measurement function | |||
| Relative value measurement function | |||
| Zero calibration function | |||
| 31/2 bit LCD display , with analog bar display | |||
| Fc / Lux unit conversion function | |||
| Outrange indication ( When the measured value exceeds the current range , LCD will display the signal ＂ OL ” to indicate that the range is overreached ); | |||
| High precision . Measurement range (0.00~20000OLux) | |||
| Low battery indicator | |||
| Auto power - off function ( The machine will be powered off automatically keys are not operated for more than 10 minutes ) | |||
| Compact design , durable , and portable | |||
| GENERAL | |||
| Power Supply | 1×9V 6F22 Battery | ||
| Product Size | 170mm×89mm×43mm | ||
| Net weight | 177g(batteries are not included） | ||
| Gross weight | 348g | ||
| Safty Rating | EN-61010-1,EN61326-1 | ||
| Package（PCS/carton） | 40 pcs | ||
| Color Box Size | 189mm×111mm×62mm | ||
| Carton Size | 400mm×335mm×465mm | ||
| G.W | 15kg | ||
| Users Manual | 1×9V 6F22 Battery |
