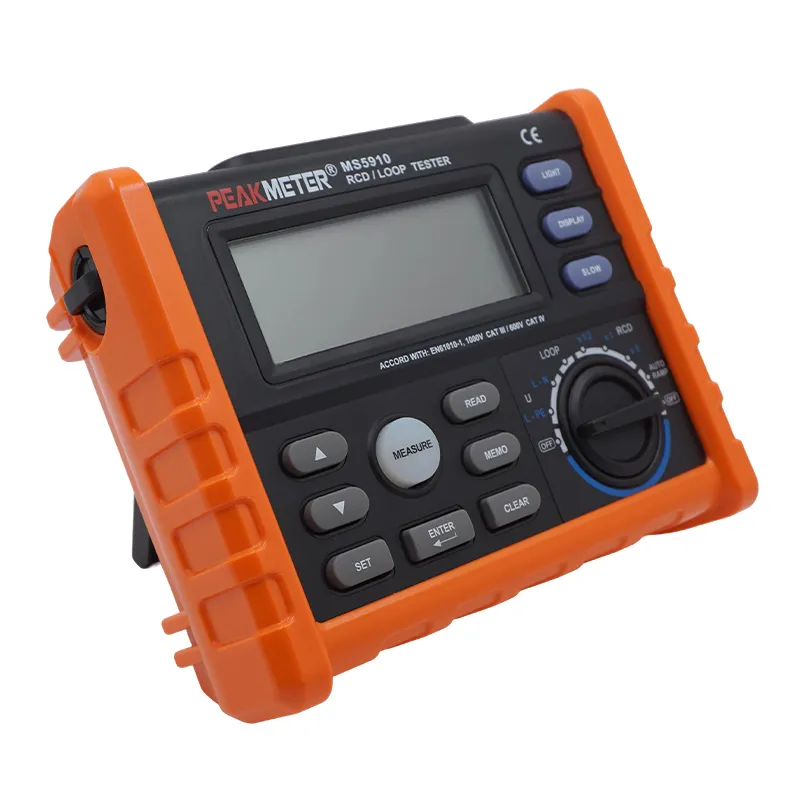

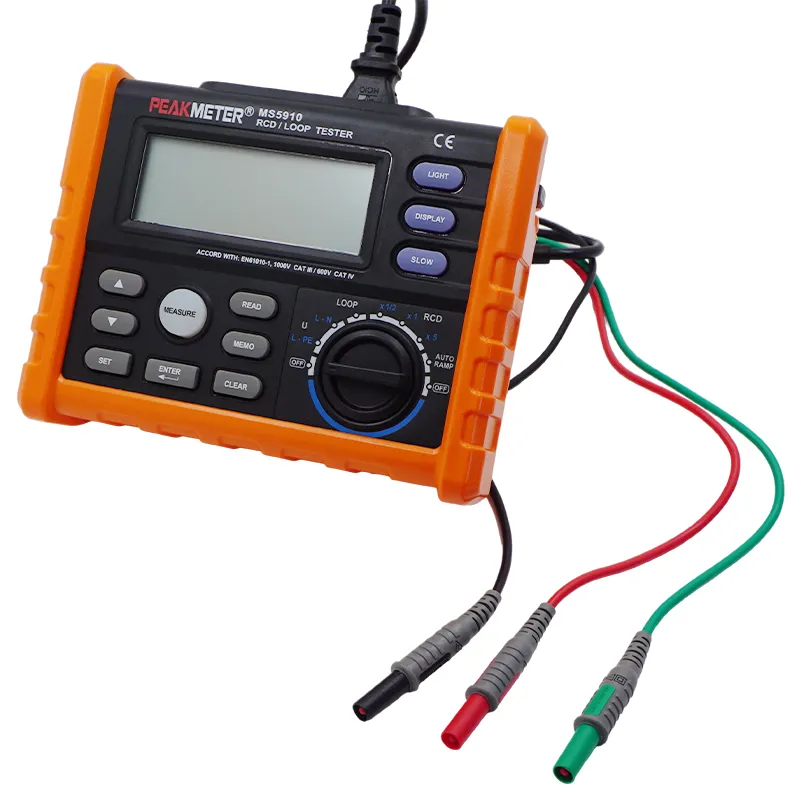

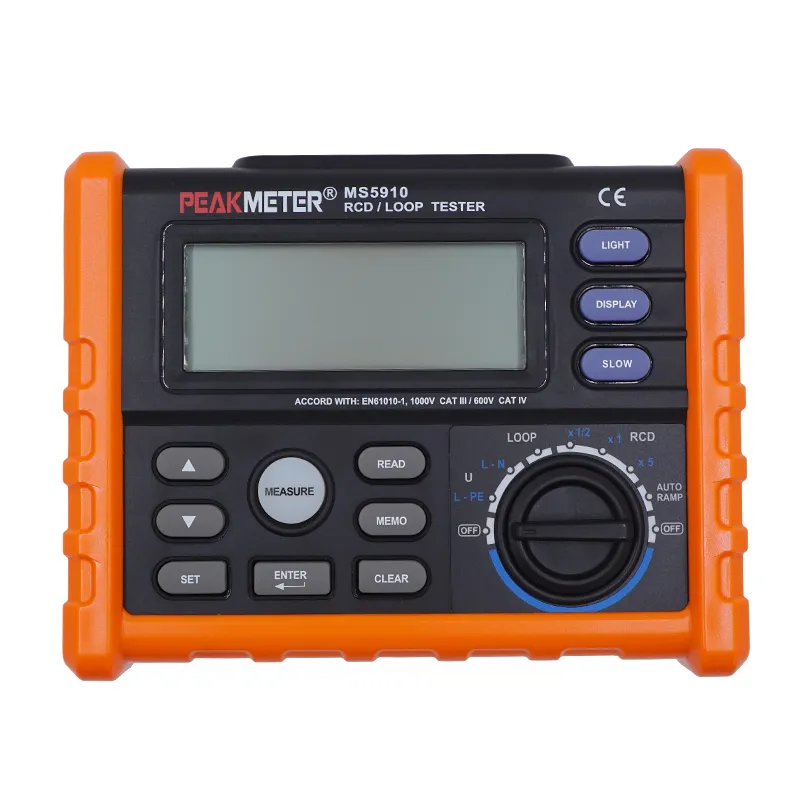

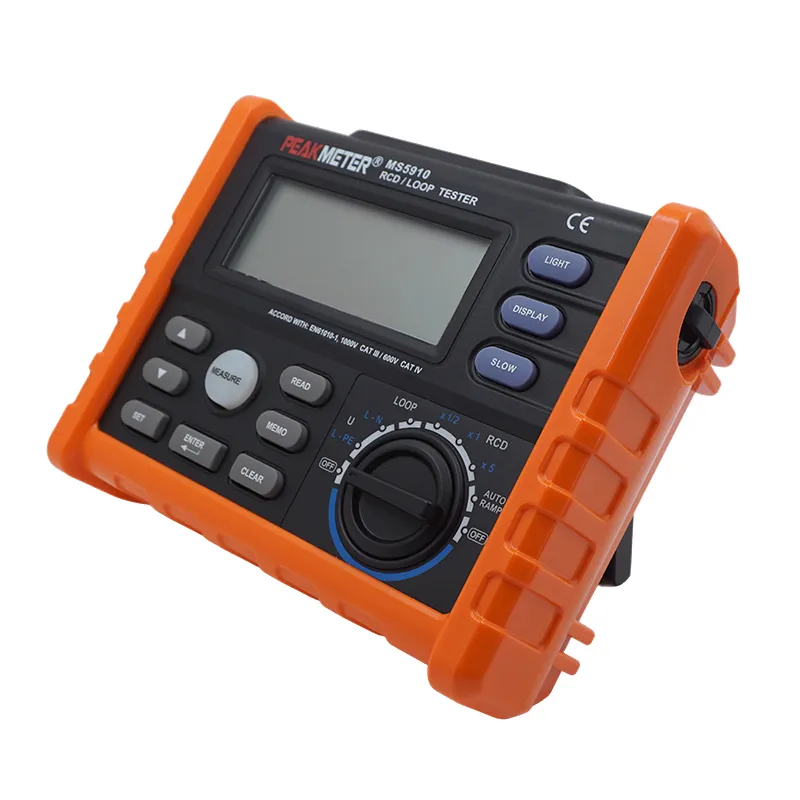

The RCD Tester brings the latest technology into an instrument which is compact, firm, durable, simple to use and convenient to carry. It can measure trip-out current, trip-out time, loop resistance, and online voltage, frequency measurement etc. It is an ideal tool for electrical inspection and repair. It complies with IEC/EN 61010-1 1000V CAT II, 600V CAT III safety standards. Max common mode voltage: 600V AC RMS. High speed Micro-process ICs to make sure its reliability. stability and accuracy. It is the ideal tool for electrical inspection and repair.
Trip-Out Current Measurement
Trip-Out Time Measurement
Contact Voltage Measurement
Loop Resistance Measurement
AV Voltage Measurement: 0V-400V
Frequency Measurement: DC 45Hz-65Hz
| SPECIFICATION | RANGE | ACCURACY | RESOLUTION |
| Tripping Time | x1 I△N300（slow 500ms) | ±3ms | 0.1ms |
| x5 I△N40ms（slow 150ms) | ±3ms | 0.1ms | |
| Tripping Current | (0.2-1.1)I△N | ±0.1I△N | 0.05I△N |
| Contact Voltage | 0～99.9V | ±(10%+0.2V) | 0.01,0.1V |
| Alternating Voltage(UL-N,UL-L,UL-E） | 0～440V | ±(3%+3V) | 1V |
| Frequency | DC,45～65Hz | ±1Hz | 1Hz |
| Loop Resistance（RL） | 0V～19.9V | ±(10%+0.2d) | 0.01Ω |
| 10.0V～99.9V | ±(10%+0.2d) | 0.1Ω | |
| RL Current test | 0.5I△N | ±(10%+10d) | 0.5I△N |
| Multiplying Power of Measuring Current | x0.5,x1,x5 | ||
| Current Level（I△N） | 10mA,30mA,100mA,300mA,500mA | ||
| Trigger Phase Angle | 0°or180° | ||
| FEATURES | |||
| Auto Power Off | √ | ||
| Display BackLight | √ | ||
| USB 2.0Interface | √ | ||
| Low Battery Display | √ | ||
| Data Logging and Recall | 1000 Groups | ||
| Display | 6000 Counts | ||
| GENERAL | |||
| Power Supply | 6×1.5V AA batteries | ||
| Net weight | 500g(include batteries） | ||
| Gross weight | 2223g | ||
| Product Size | 200mmx155mmx76mm | ||
| Safety Rating | EN61010-1, CAT.IIl 1000V CAT.IV 600V | ||
| Package（PCS/carton） | 6 PCS | ||
| Color Box Size | 340mmx265mmx103mm | ||
| Carton Size | 560mmx360mmx335mm | ||
| G.W | 14.5kg | ||
| Test Leads | 3x Alligator Clip | Users Manual | 6x AA Alkaline Batteries |
