PM701 EVSE Tester High-Performance Diagnosis Machine For Cars EVSE Adaptor For All Standard AC Charging Stations with PE Pre-Testing

Advanced Charging Station Tester - PM701U/PM701E/PM701UT

Features of the PM701 Series EVSE Adapters

Multi-Standard Support— Compatible with Various Protocols


Extensive Evaluation Functions— Emulate Charging Conditions; Preliminary Testing Capabilities; Fault Replication


Protective Measures— Electrical Current Leakage Examination; Adherence to Certified Norms (IEC/EN 61010-1, IEC/EN 61010-2-030, CAT III 600V standards)


Intuitive Operation— Visual Status Indicator; Adaptable Output Connectors


Robustness and Dependability— IP54 Rated for Resistance to Dust and Water; Premium-Grade Components


Advanced Technical Features— Accommodates Different Voltage Systems (Single-Phase and Three-Phase); Efficient Circuit Protection (10A/250V Fuse)

Description of the PM701 Series EVSE Adapters

 The PM701 series is the ideal choice to ensure the safe and reliable operation of charging stations.

 The PM701 series EVSE adapters include models PM701U, PM701E, and PM701UT, designed for AC charging stations. They comply with various international standards and are compatible with different charging station interfaces.

 The PM701 series EVSE adapters are professional tools designed for electric vehicle charging stations. With comprehensive testing capabilities, exceptional safety features, and a robust design, these adapters can effectively simulate charging states, detect electrical faults, and provide instant feedback. Whether for installation, maintenance, or troubleshooting,

• Test Interface: Complies with SAE J1772 (Type 1), Type 2 (European Standard), and NACS (Tesla).
• Error Simulation: Capable of simulating cable resistance, CP errors, and PE errors to identify and troubleshoot potential issues.
• Pre-Testing Functions: Includes PE (Protective Earth) and CP (Control Pilot) pre-testing to verify proper functionality before use.
• Simulate Charging States: Can simulate different charging states (A, B, C, or D) to provide thorough diagnostics.
• Testing Functions: Supports simulating charging states (A, B, C, or D), PE pre-testing, CP end testing, simulating cable resistance, and simulating CP and PE errors.
• Electrical Leakage Test: Includes an electrical leakage trip test (≥6mA/110V).

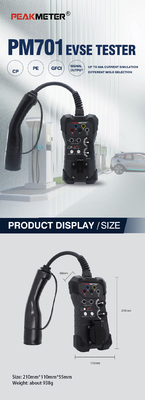

Images of the PM701 Series EVSE Adapters

PM701 Series EVSE Adapters: Specifically designed for electric vehicle charging stations, compatible with multiple international standards to ensure the safety and reliability of charging stations.
