Pen-type Auto Range Digital Multimeter AC&DC Voltage measurement NCV test


Features of Pen-type Digital Multimeter


  • Outrange indication: “OL” displaying on the LCD screen
  • AC&DC voltage and current measurement
  • Fuse protection: Fuse FF250mA/600V
  • Continuity, Diode and NCV test
  • Manual and automatic ranges
  • Display: 31/2 digit LCD


Specifications Range Accuracy
DC Voltage 200mV/2V/20V/200V ±(0.7%+2)
600V ±(0.8%+2)
AC Voltage 200mV/2V/20V/200V ±(0.8%+3)
600V ±(1.0%+3)
DC Current 20mA/200mA ±(1.5%+3)
AC Current 20mA/200mA ±(1.5%+4)
Resistance 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ±(1.0%+2)
20MΩ ±(1.0%+5)
Capacitance 20nF/200nF/2µF/200µF ±(4.0%+3)
2mF/20mF ±(5.0%+3)
Frequency 200Hz/1KHz ±(5.0%+2)
Display 2000Counts
Diode Test
Data Hold
Work Light
Power Supply 2×1.5V AAA batteries
Net weight 134g(batteries are not included)
Size 248mm×42mm×34mm
Safety Rating EN61010-1,EN61010-2-033,EN61326, CAT.Ⅲ 600V


Description of Pen-type Digital Multimeter

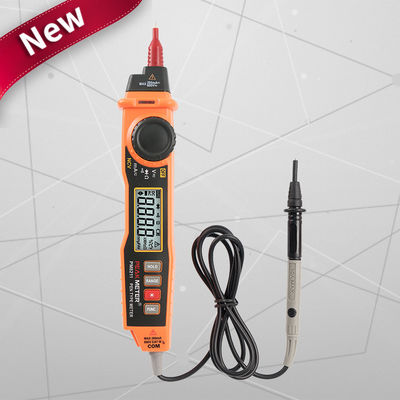

PM8211 is a pen-type digital multimeter. It has 31/2-digit liquid crystal display, stable performance, high precision, low power consumption, novel structure, safety and reliability, and is an ideal measuring instrument for the majority of users.

This meter can measure AC and DC voltage, AC and DC current, resistance, continuity, diode, capacitance and frequency; it also has NCV function, allowing users to use it more safely.


  • The red test probe is integrated with the instrument, which is more convenient for users to use and reduces the inconvenience caused by the use of multiple test probes.
  • NCV (non-contact voltage), the NCV sensing area is close to the detection wire, and the NCV indicator will issue an alarm when there is voltage, indicating that there is voltage.


Pen Type Auto Range Digital Multimeter AC DC Voltage Measurement NCV TestPen Type Auto Range Digital Multimeter AC DC Voltage Measurement NCV Test




  • All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface) , and delivery fee will be borne by customer.
  • Material and service fee will be charged when warranty is expired, and delivery fee will be charged .
  • To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs .
  • Customer can refer the maintenance order to get more information .
