Overload Protection Handheld Digital Multimeter With T - RMS Wide Range And High Precision

Overload Protection Handheld Digital Multimeter With T - RMS Wide Range And High Precision

Live Line Test
60MΩ
Chat Now
Service Hotline:
0773-3682306
High-flow and high-efficiency grinding and dispersion

Filter sand mill, which is more favored by high viscosity materials, gets rid of the traditional blockage problem and is equipped with Boyi TurboMax independently developed turbine structure.

Provide excellent operational stability, higher equipment flow, improve production efficiency and reduce costs

Higher traffic
Excellent high viscosity material handling capabilities
Optional TurboMax turbo and rod pin grinding systems
Available in ceramic, polymer and alloy components
Longer filter life
Full range of models to meet needs from laboratory to scale production
Daily maintenance is simple and fast
Low noise effects
Product Details
Place of Origin:
China
Brand Name:
PEAKMETER
Certification:
CE
Model Number:
PM18
User-defined Attribute
Function 1:
Live Line Test
Resistance:
60MΩ
Function 2:
ACV/ACA TRMS
Frequency:
10MHz
Product Name:
Digital Multimeter With T-RMS
Capacitance:
100mF
High Light:

electrical multimeter tester

,

auto electrical tester multimeter

,

overload protection handheld digital multimeter

Payment & Shipping Terms
Minimum Order Quantity:
1
Price:
Negotiation
Packaging Details:
Product Size 190mm x89mm x50mm Product Weight Approx. 380g
Delivery Time:
5-40 work days
Payment Terms:
T/T
Supply Ability:
150,000 Pcs Per Month

Hand - Held Digital Multimeter With T-RMS , Wide - Range And High Precision





English User Manual:https://drive.google.com/open?id=1HcFFSdh220gP1FJrMc0MDpKZyoRXl_5T





Features of Digital Multimeter with T-RMS



  • Overload Protection and Battery Voltage Indication



  • Manual Range, Data Hold, Non-Contact Voltage Detector, Diode Test, Transistor and Continuity Measurement



  • Built-in Flashlight for easy lighting



  • Powered by 4 x 1.5V AA batteries ( not included )



Specifications Range Accuracy
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+3)
AC Voltage 6V/60V ±(0.8%+3)
600V/750V ±(1%+10)
DC Current 60µA/60mA/600mA ±(0.8%+3)
20A ±(1.2%+3)
AC Current 60mA/600mA ±(1.0%+3)
20A ±(1.5%+3)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+3)
60MΩ ±(1.2%+30)
Capacitance 6nF ±(4.0%+30)
60nF/600nF/6µF/60µF/600µF/6mF ±(4.0%+3)
100mF ±(5.0%+3)
Frequency 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz ±(1.0%+3)
Duty 5%~95% ±(2.0%+3)
hFE 0~1000 ±(1.0%+3)
Features
Display 6000 counts
Live Line Test (high, medium and low) Sound And Alarm
ACV (bandwidth) 1kHz
Frequency 10MHz
Duty 5%~95%
Resistance 60MΩ
Capacitance 100mF
Continuity (Sound and LED Alarm)
Low Battery Indication
Auto Power Off
ACV/ACA TRMS
Diode Test
Work Light
NCV
hFE
General
Power Supply 4*1.5V AA batteries
Net weight Approx.331g (batteries are not included)
Gross weight 556g
Size 193mm*90mm*55mm
Safety Rating EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 1000V/CAT. Ⅳ 600V





Description of Digital Multimeter with T-RMS

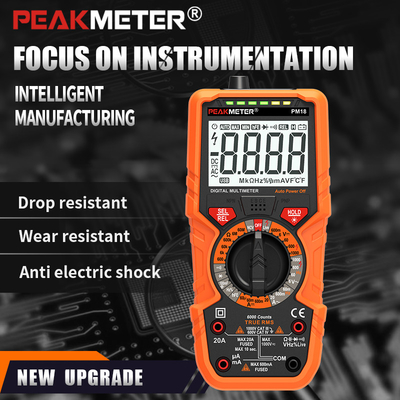

PM18 is a hand-held professional Digital Multimeter to measure AC / DC Voltage, AC / DC Current, Resistance, Capacitance, Temperature, Frequency, and Duty Cycle.It has a large LCD digital display screen and Backlighting function, which makes it easy for users to read data.



  • MAJOR FUNCTION - The meter comes with a K-Type Thermocouple for Temperature Measurement up to 1000 Degree Celsius, it will measure the Ambient Temperature without the probe connected.



  • SMART DESIGN - PM18 is made of qualitative materials with a sturdy and durable integral construction. Since the instrument is ergonomically designed,users will feel comfortable and firm during use.



  •  FUNCTIONAL DIVERSITY - Diode test, Auto power off, Low Battery Indicator, 2.75 inches white LCD Backlight . The stand on the back also sets free your hands while you are working. On the back of the meter is a flashlight which will prove invaluable in dark recesses.
