High Temp Handheld Infrared Thermometer Gun Operating Temperature - 50 ~ 300 Degree

High Temp Handheld Infrared Thermometer Gun Operating Temperature - 50 ~ 300 Degree

Data Hold
Color Diaplay
Chat Now
Service Hotline:
High-flow and high-efficiency grinding and dispersion

Filter sand mill, which is more favored by high viscosity materials, gets rid of the traditional blockage problem and is equipped with Boyi TurboMax independently developed turbine structure.

Provide excellent operational stability, higher equipment flow, improve production efficiency and reduce costs

Higher traffic
Excellent high viscosity material handling capabilities
Optional TurboMax turbo and rod pin grinding systems
Available in ceramic, polymer and alloy components
Longer filter life
Full range of models to meet needs from laboratory to scale production
Daily maintenance is simple and fast
Low noise effects
Product Details
Place of Origin:
Brand Name:
Model Number:
User-defined Attribute
Function 1:
Data Hold
Color Diaplay
Function 2:
Back Light
IRT Temperature:
Function 3:
Product Name:
Handheld Infrared Thermometer
High Light:

non contact infrared thermometer


infrared temperature gauge

Payment & Shipping Terms
Minimum Order Quantity:
Packaging Details:
Product Size 163mm x97mm x33mm Product Weight Approx. 130g
Delivery Time:
5-40 work days
Payment Terms:
Supply Ability:
150,000 Pcs Per Month

Non-Contact K - Type Temperature Meter Gun , D : S : 12:1 , Operating Temperature : -50~300 Degree



Features of Infrared Thermometer


  • Distance to spot 12:1,giving the more precise data.​
  • Built-in Laser Pointer to Target Spot
  • Larger Termperature Range
  • 0.1C/F Max Resolution
  • Colorful backlight display, quick and easy to read
  • K-type temperature probe to measure
  • The auto power-off can be done after the data showing for 5minutes.
  • Temperature screening and temperature change alarm
  • Data hold function low power indication, and auto power off
  • Adjustable emissivity, data hold function, optional temperature units: Celsius(°C) and Fahrenheit(°F).


IRT Temperature -50℃~300℃ ±1.5%
-58℉~572℉ ±1.5%
Ambient Temperature -20˚C~60˚C ±0.5˚C/1.0˚F
Color Display
Laser Target Pointer (<1mW 630nm-650nm) Circle
D:S 12:1
Emissivity 0.10~1.00
Spectral Response 8~14um
Response time <0.5s
IRT Temperature -50˚C~300˚C -58˚F~572˚F
Ambient Temperature
Temperature Bridge Alarm(Red/Yellow/Green LED)
Auto Power Off

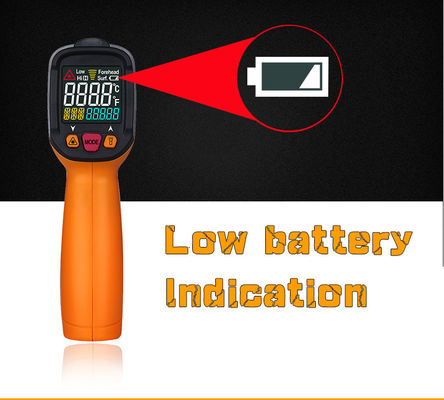

Low Battery Indication
Power Supply 6F22 9V Batteries
Weight 130g
Size 163mm×97mm×33mm
Safety Rating EN61326,EN60825


Product Description of Infrared Thermometer


PM6530 series are colorful display and non-contact infrared thermometer that allows you to measure the temperature of the objects by detecting their infrared energy. Multipurpose for cooking, refrigeration, automotive, air conditioning, HVAC and other households. Besides, it's also used in industrial, outdoor, indoor and other places.


  • Non-contact temperature measurement – Aim the thermometer at the object, and hold the trigger, to conduct continuous measurement of temperature. When the measured value is greater than upper limit of high alarm or the measured value is less than the lower limit of low alarm, the red alarm indicator will turn on to alarm.
  • Target distance ratio – Larger objects may cause larger temperature measurement distance; for smaller objects, the measurement distances must be close. The ratio of measurement distance to the measured target is 12 : 1.


Package included:
1*Infrared Thermometer.
1*User Manual.


Detailed Images of Infrared Thermometer


High Temp Handheld Infrared Thermometer Gun Operating Temperature - 50 ~ 300 DegreeHigh Temp Handheld Infrared Thermometer Gun Operating Temperature - 50 ~ 300 Degree
