| Specifications | Range | Accuracy |
| DC Voltage | 6V/60V/600V | ±(0.5%+3) |
| AC Voltage | 6V/60V/600V | ±(0.8%+5) |
| AC Current | 60A/600A/1000A | ±(2.5%+8) |
| DC Current | 60A/600A/1000A | ±(3.0%+10) |
| Resistance | 6kΩ/60kΩ/600kΩ/6MΩ/10MΩ | ±(0.8%+3) |
| Frequency | 60Hz/1000Hz | ±(1.0%+5) |
| Features | ||
| Display | 6000 counts | |
| Continuity | √ | |
| V/Ω/A/Cap Auto Scan | √ | |
| Frequency (Clamp) | √ | |
| Frequency (Voltage) | √ | |
| Data Hold | √ | |
| Back Light | √ | |
| NCV | √ | |
| LowZ (1kHz-3dB) | √ | |
| Auto Power Off | √ | |
| Dual Display | √ | |
| General | ||
| Power Supply | 3*1.5V AAA Batteries | |
| Net weight | 312g (batteries are not included) | |
| Gross weight | 586g | |
| Size | 247mm*85mm*40mm | |
| Jaw Size | Ø35mm | |
| Safety Rating | EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V | |

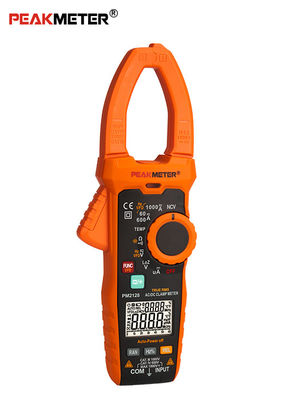

PM2128S is a portable professional measuring with NCV and backlight easily reading. This is a meter that has many functions, DC AC Voltage, AC DC Current, Resistance, Capacitance, Frequency, Temperature, LowZ and DC uA, etc. It shall be re-carlibrated under 18℃~28℃,with relative humidity less than 75%. The 2128S complies with safety requirements on electric measuring instrument of EN-61010-1, EN61010-2-032, EN61326 CAT.Ⅲ 1000V.
