1000V DC Voltage Digital Insulation Tester 100GOhm Max Auto Calculate PI And DAR

1000V DC 750V AC Voltage measuring 100GOhm Insulation resistance of Solar Panel DAR and PI function

Peakmeter Photovoltaic System Solution:Peakmeter Photovoltaic System Solution.pdf

Features of Digital Insulation Resistance Tester

• Can lock down data and set up timing during insulation test
• Output 1000V max to measure insulation
• Storing, read and compare data
• The instrument will discharge automatically to protect user when the load is capacitive
• Auto calculate PI (Polarization index) and DAR (Dielectric absorption ratio).
• Measuring insulation resistance of solar panel
• AC and DC voltage measurement Function
• Up to 20 groups od display data can be stored
• Resistance measurement Function
• Analog bar and Digital display
• Back Light Function
• Comparing Function
• Auto Power Off
• Timing Function

Description of Digital Insulation Resistance Tester

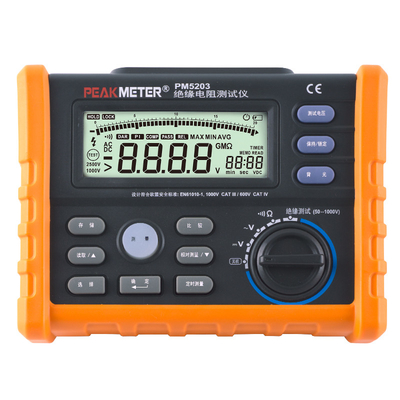

MS5203 is a digital and analog display insulation tester. It has 50V, 100V, 250V, 500V, 1000V insulation test voltages to measure insulation resistance of solar panel. This tester’s insulation short-circuit test current is 1.8mA. The meter has auto calculate PI and DAR function, automatic power off function, data hold function, relative measurement function, insulation test lock function, storing/reading test data function, delete data function, compare function, timer function, MAX/MIN/AVG function and so on.

• Display-It consists of an analog display, a main display and a secondary display. Large high-definition display with backlight function enables users to read clearly in dark environments.
• Insulation measurement-Measurement maximum value, minimum value, average value, comparison upper limit value, comparison lower limit value, DAR, PI.
• Data storage-The instrument can store up to 20 sets of data, and the new stored data will overwrite the original stored data when the data is stored. The stores data can be read and cleared according to user needs.
