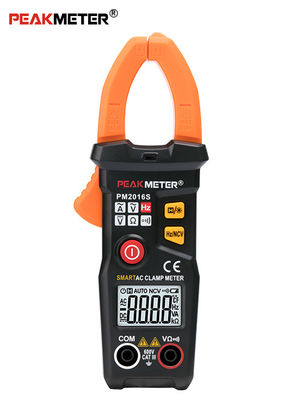

Hand - Held And Mini Size AC Digital Clamp Multimeter For Industrial Use

Hand - Held And Mini Size AC Digital Clamp Multimeter For Industrial Use
Hand - Held And Mini Size AC Digital Clamp Multimeter For Industrial Use Hand - Held And Mini Size AC Digital Clamp Multimeter For Industrial Use

Large Image :  Hand - Held And Mini Size AC Digital Clamp Multimeter For Industrial Use

Product Details:
Place of Origin: China
Brand Name: PEAKMETER
Certification: CE
Model Number: PM2016S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Product Size 158*53*28mm Product Weight Approx. 150g
Delivery Time: 5-40 work days
Payment Terms: T/T
Supply Ability: 150,000 Pcs Per Month

Hand - Held And Mini Size AC Digital Clamp Multimeter For Industrial Use

Description
Product Name: Digital Clamp Meter Auto Scan: YES
Data Hold: YES Backlight: YES
Display Type: Digital Only Certificate: CE CAT.II1000V CAT.III600V RoHS
High Light:

commercial electric clamp meter

,

ac dc current clamp meter

Hand - Held And Mini Size AC Digital Clamp Multimeter For Industrial Use

Features

PM2016S can perform measurements of AC/DC voltage and current, resistance, frequency, duty, capacitance, as well as continuity and diode test.

6000 Display Count: Features an easy-to-read large backlit LCD to improve visibility, it gives you fast accurate readings with data hold function

Auto Ranging Measurement: Free from tedious function selection of traditional rotary switch. Stable performance, high precision, and low power consumption, safe and reliable.

Frequency:This meter can measure frequency by clamp.

Back light: In the process of measurement, press the key for more than 2 seconds to enable backlight function.

Product Description

SPECIFICATIONS RANGE ACCURACY
PM2016A PM2016S
DC Voltage 0~600.0V ±(0.5%+3)
  0.5~600.0V   ±(0.5%+3)
AC Voltage 1.0~600V ±(0.8%+5) ±(0.8%+5)
AC Current 10mA~200A ±(2.5%+5) ±(2.5%+5)
Resistance 0~6KΩ ±(0.8%+3) ±(0.8%+3)
Capacitance ﹤30.0Ω
Frequency 40Hz-1000Hz   ±1%rdg
FEATURE PM2016A PM2016S
Count 6000 6000
AutoRange
AC Current 6A/60A/200A 6A/60A/200A
DC Voltage 600.0V 600.0V
AC Voltage 600.0V 600.0V
Continuity √﹤30.0Ω √﹤30.0Ω
Ω 6KΩ 6KΩ
V/Ω/A Auto Scan
Frequency (Clamp)   1kHZ
Frequency (Voltage)   1kHZ
Data hold
BackLight
NCV
GENERAL
Power Supply 2×1.5V AAA Battery
Weight 150g
Size 158mm×60mm×29mm
Jaw Size φ20mm
Safety Rating EN61010-1,EN61010-2-032,EN61326,CAT.Ⅲ 600V
