Home Products Products Range AC/DC Digital Clamp Meter Multimeter Auto Range Smart Mini Size With RoHS Approval
AC/DC Digital Clamp Meter Multimeter Auto Range Smart Mini Size With RoHS Approval

AC/DC Digital Clamp Meter Multimeter Auto Range Smart Mini Size With RoHS Approval

Auto Range
0~100A
Chat Now
Service Hotline:
0773-3682306
High-flow and high-efficiency grinding and dispersion

Filter sand mill, which is more favored by high viscosity materials, gets rid of the traditional blockage problem and is equipped with Boyi TurboMax independently developed turbine structure.

Provide excellent operational stability, higher equipment flow, improve production efficiency and reduce costs

Higher traffic
Excellent high viscosity material handling capabilities
Optional TurboMax turbo and rod pin grinding systems
Available in ceramic, polymer and alloy components
Longer filter life
Full range of models to meet needs from laboratory to scale production
Daily maintenance is simple and fast
Low noise effects
Product Details
Place of Origin:
China
Brand Name:
PEAKMETER
Certification:
CE
Model Number:
PM2116S
User-defined Attribute
Function 1:
Auto Range
Measuring Current:
0~100A
Function 2:
V/Ω/A Auto Scan
Measuring Resistance:
0~6KΩ
Product Name:
Digital Clamp Meter
Measuring Voltage:
0~600V AC/DC
High Light:

commercial electric clamp meter

,

earth leakage clamp meter

Payment & Shipping Terms
Minimum Order Quantity:
1
Price:
Negotiation
Packaging Details:
Product Size 158*53*28mm Product Weight Approx. 150g
Delivery Time:
5-40 work days
Payment Terms:
T/T
Supply Ability:
150,000 Pcs Per Month

Auto Range Smart Mini AC/DC Digital Clamp Meter Multimeter With RoHS



Features of Smart Digital Clamp Meter



  • Display: LCD
  • Operating height: Max. 2000m
  • Max. display value: 6000 numbers
  • Over range display: ‘0L’ or ‘-0L’.
  • Sampling time: About 3 times/second.
  • Automatic shut-down time: 10 minutes
  • Operating temperature: 18℃ ~ 28℃.
  • Storage temperature: -10℃ ~ 50℃.
  • Overload protection throughout the range.
  • Temperature coefficient: Less than 0.1×accuracy/℃.
  • Unit display: Function and electricity quantity unit display.
  • Polarity indication: Automatic indication, and ‘-’ indicates negative.
  • Max. voltage between measurement terminal and ground: 1000V DC or 1000V AC



Specifications Range Accuracy
DC Voltage 0.5V~600V ±(0.5%+3)
DC Current 6A/60A/200A ±(3.0%+8)
AC Voltage 1.0~600V ±(0.8%+5)
AC Current 6A/60A/200A ±(2.5%+8)
Resistance 0~6kΩ ±(0.8%+3)
Frequency 60Hz~1000Hz ±(1.0%+5)
Features
Display 6000 counts
Auto range
Continuity
V/Ω/A Auto Scan
Frequency (Clamp)
Frequency (Voltage)
Data Hold
Back Light
NCV
General
Power Supply 2*1.5V AAA Batteries
Net weight 115g (batteries are not included)
Gross weight 250g
Size 158mm*55mm*29mm
Jaw Size Ø20mm
Safety Rating EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V



Product Description of Smart Digital Clamp Meter



The PM2116S is designed to automatically select measurement functions and measuring ranges. This intelligent AC/DC Clamp Meter is an innovative product, which has breaks through the traditional clamping universal meter and become a high-tech measuring tool.The product can display the Current Frequency while measuring the Current/Voltage, and they will be displayed on its display screen.It has Low Pass Filter, Peak Value Measurement, Non Contact Voltage detection, Backlight display,Data Hold function. Users can complete the above functions at any time whenever the Multimeter been boot up. Users does not need to make any gear changes during the measurement without fear that if it will be burnt by the wrong operation.



  • The instrument is designed to automatically select measurement functions and measuring ranges.
  • This instrument is in strict compliance with the safety requirements as specified in IEC-61010-1, IEC-61010-2-030 for electrical measuring instruments.

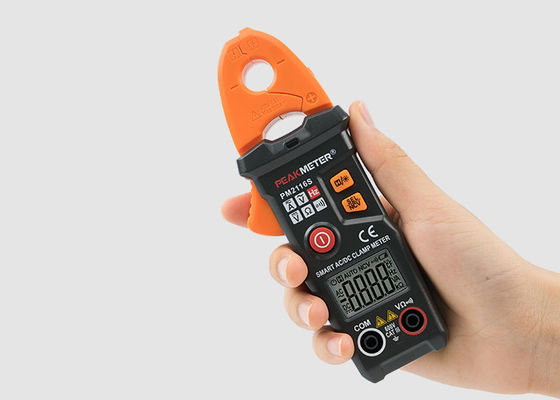

Detailed Images of Smart Digital Clamp Meter



AC/DC Digital Clamp Meter Multimeter Auto Range Smart Mini Size With RoHS Approval



Our Target



We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.



R&D Team



Our R&D team have over 20 years R&D experience in instrument industry .



Mission



Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
