| Specification | Range | Accuracy |
| DC Voltage | 6V/60V/600V | ±(0.5%+3) |
| 1000V | ±(0.8%+) | |
| AC Voltage | 6V/60V/600V | ±(0.8%+5) |
| 1000V | ±(1.0%+5) | |
| AC Current | 6A | ±(2.5%+8) |
| 60A/600A | ±(2.5%+5) | |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ | ±(1.0%+3) |
| 60MΩ | ±(1.2%+30) | |
| Capacitance | 60nF/600nF/6uF/60uF/600uF/6mF | ±(4.0%+3) |
| 60mF | ±(5.0%+5) | |
| Frequency | 10Hz/100Hz/1kHz/10kHz100kHz/1MHz | ±(1.0%+5) |
| K-type Thermocouple Temperature |
-209C-1000°C | ±(2.0%+2) |
| -4*F~1832°F | ±(2.0%+2) | |
| Features | ||
| Display | 6000 counts | |
| Backlight | √ | |
| Relative measurement | √ | |
| Manual /Automatic Range | √ | |
| Maximum,minimum measurement | √ | |
| Low Battery Indication | √ | |
| Auto Power Off | About 15 minutes | |
| NCV | √ | |
| Diode test | √ | |
| Continuity | √ | |
| Single probe live wire detection | √ | |
| Data Hold | √ | |
| VDF | √ | |
| True RMS | √ | |
| General | ||
| Power Supply | 2*1.5V AAA Batteries | |
| Net weight | 189g (batteries are not included) | |
| Size | 195mm*66mm*33mm | |
| Jaw Size | φ35mm | |
| Safety Rating | EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V | |

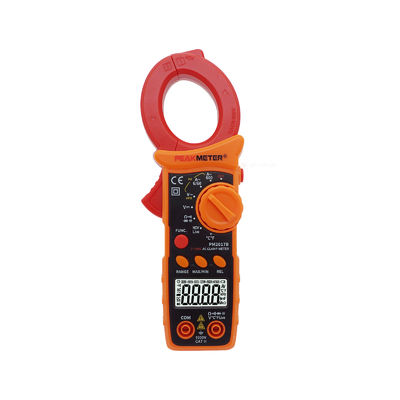

The PM2017B digital AC clamp meter is a stable, safe and reliable instrument. The circuit of the whole machine is based on integrated circuits, equipped with full-range over-current protection circuit, novel appearance, can be used for AC current, AC and DC voltage, temperature, frequency, resistance, capacitance, diode and circuit breakage measurement and non-contact voltage and fire line detection, it is a superior performance electrical instrument.
